Thermostatic Expansion Valve: Material
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) | WSH-M1C231-B |
NOTE:
Installation of a new receiver drier is not required when repairing the air conditioning system ex when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver drier.
NOTE:
New O-ring seals, lubricated in clean PAG oil, must be installed before reconnecting any A/C f that has been disconnected.
- Remove the evaporator core. For additional information, refer to HEATER CORE AND EVAPORATOR CORE HOUSING, ASSEMBLY AND COMPONENTS .

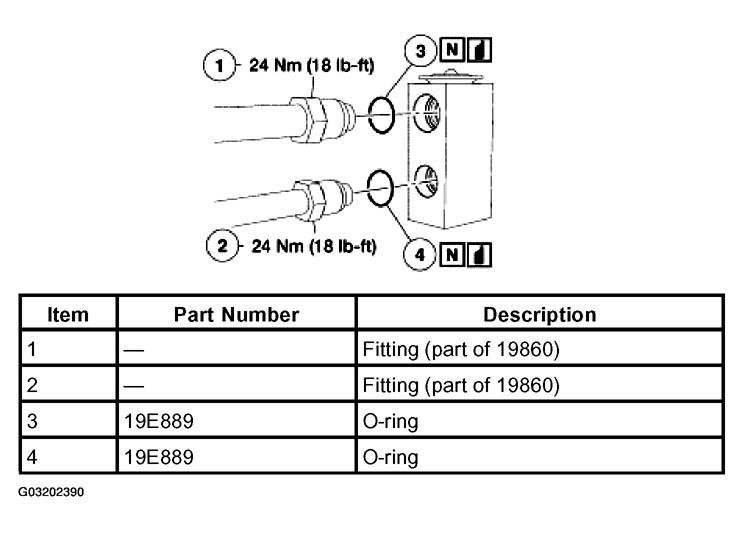

- Remove the components in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
