Audio Unit Amplifier - Center Imaging

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver side kick panel.
Remove the parts in the order indicated in the following illustration and table.

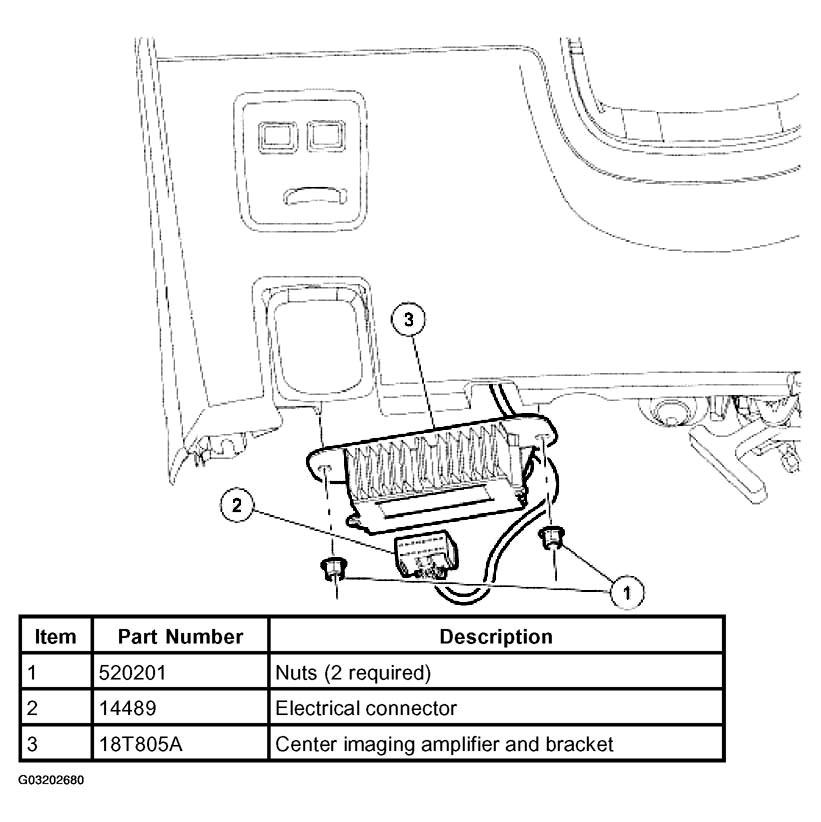

Fig 1: Identifying Removal Order Of Audio Unit Amplifier - Center Imaging
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
