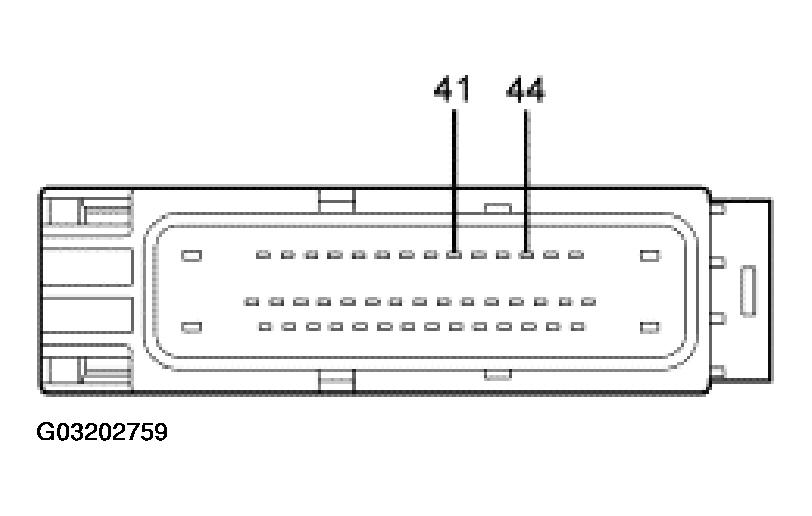

IVD Module C155
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 41 | 29S-CF1 (OG/YE) BPP switch input circuit | 0 voltage, less than 5 ohms between the IVD module and the BPP switch. Greater than 10 volts when the brake pedal is applied. |
| 44 | 29S-CF2 (OG/BU) IVD module brakes applied output circuit | 0 voltage, less than 5 ohms between the IVD module and the REM. Greater than 10,000 ohms between the IVD module and ground. |
