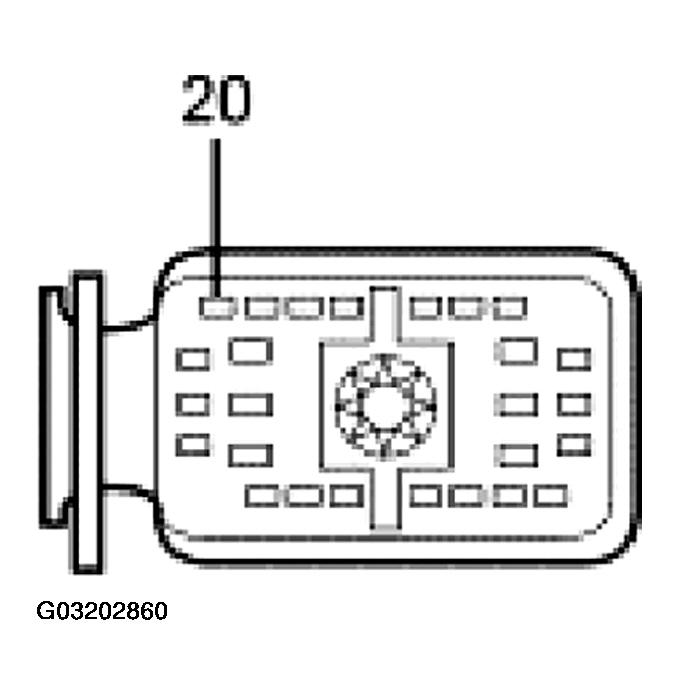

CJB C270d
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 20 |
29S-LC36 (OG/YE) RH front puddle lamp power supply circuit |
Greater than 10,000 ohms to ground with RH front puddle lamp disconnected. Less than 5 ohms between CJB and RH front puddle lamp. |
