In-line C315M, C315F

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

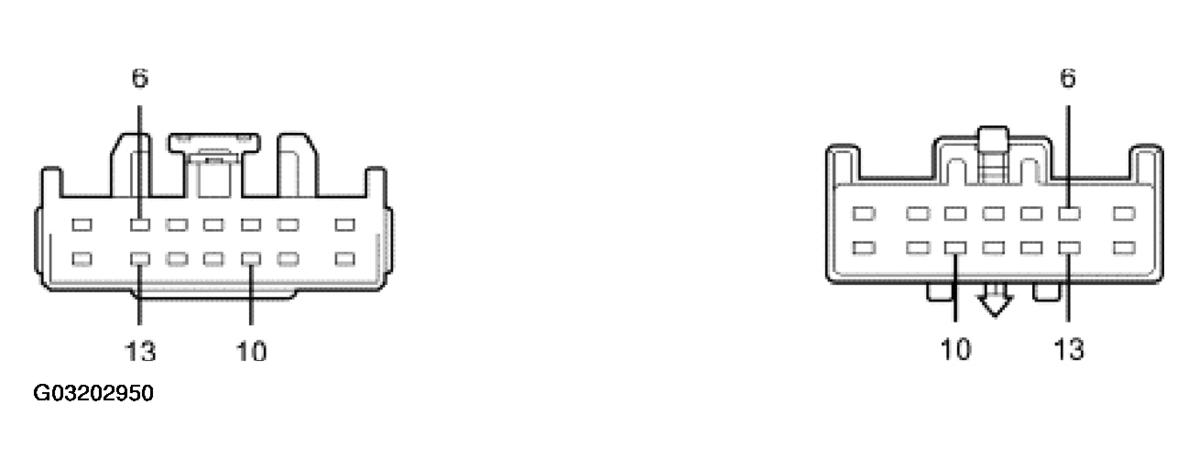

Fig 1: Identifying In-Line C315M, C315F Connector Pins

Courtesy of FORD MOTOR CO.

IN-LINE C315M, C315F PINS DESCRIPTION

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
6	4-AH80 (GY/WH) SCP communication circuit.	Less than 5 ohms between the module connector, DLC or inline connector. Greater than 10,000 ohms to ground with all network modules disconnected.
10	4-HC21 (GY/OG) UBP communication circuit.	Less than 5 ohms between the module connector, DLC or inline connector. Greater than 10,000 ohms to ground with all network modules disconnected.
13	5-AH80 (BU/OG) SCP communication circuit.	Less than 5 ohms between the module connector, DLC or inline connector. Greater than 10,000 ohms to ground with all network modules disconnected.
