Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Cycle the roof opening panel glass through the fully-open to the fully-closed position.
Loosen the 4 roof opening panel glass screws.
Adjust the roof opening panel glass to specification.

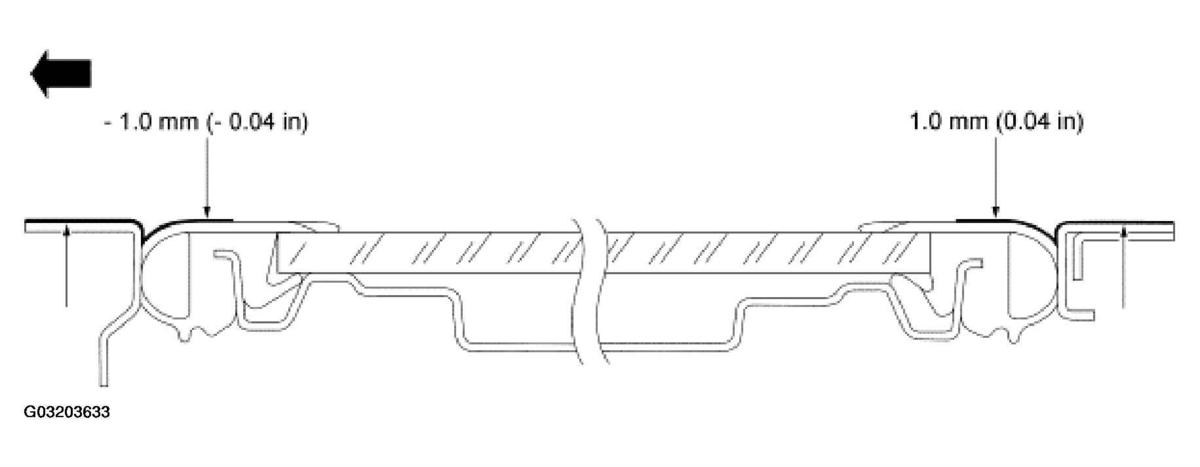

Fig 1: Adjusting Roof Opening Panel Glass To Specification
Courtesy of FORD MOTOR CO.
Tighten the 4 roof opening panel glass screws.
- Tighten to 4 N.m (35 lb-in).
Initialize the roof opening panel motor. For additional information, refer to ROOF OPENING PANEL MOTOR INITIALIZATION .
