Windshield Wiper

CAUTION: The windshield wiper system has an auto park feature. It is necessary to disconnect the battery.
1. Disconnect the battery ground cable.
2. Partially drain the engine cooling system. For additional information, refer to ENGINE COOLING .
3. Remove the cowl panel grille. For additional information, refer to COWL PANEL GRILLE .
4. Remove in the order indicated in the following table.

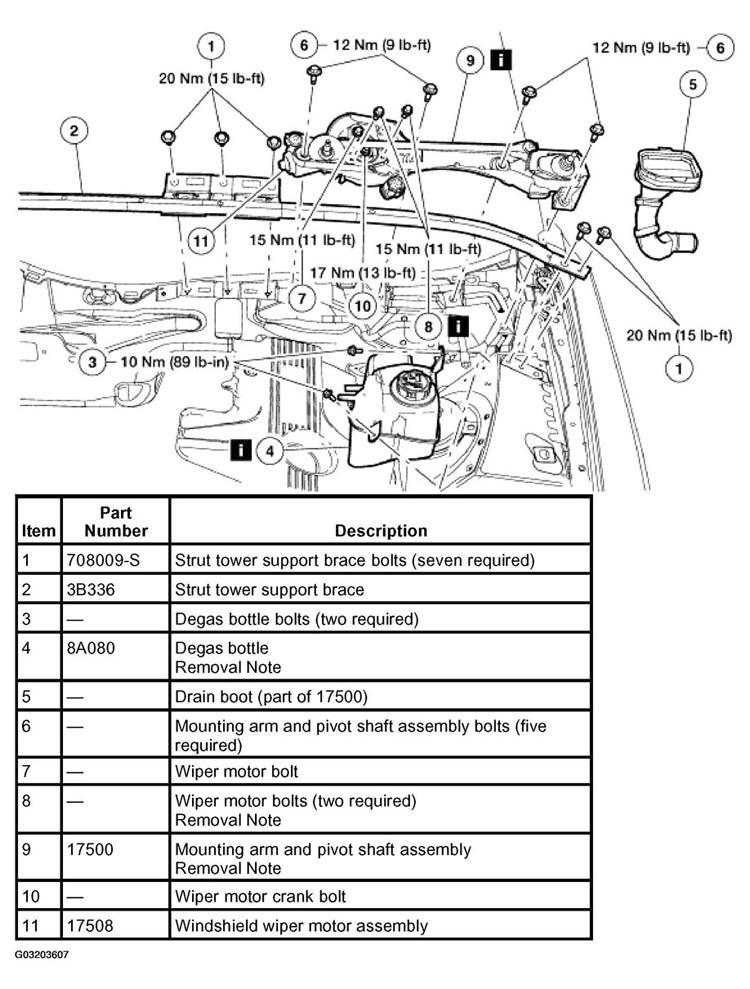

   Fig 1: Removing Windshield Wiper Components

   Courtesy of FORD MOTOR CO.
5. To install, reverse the removal procedure.

Item 4: Degas Bottle Removal Note

1. Disconnect the degas return hose from the degas return tube.

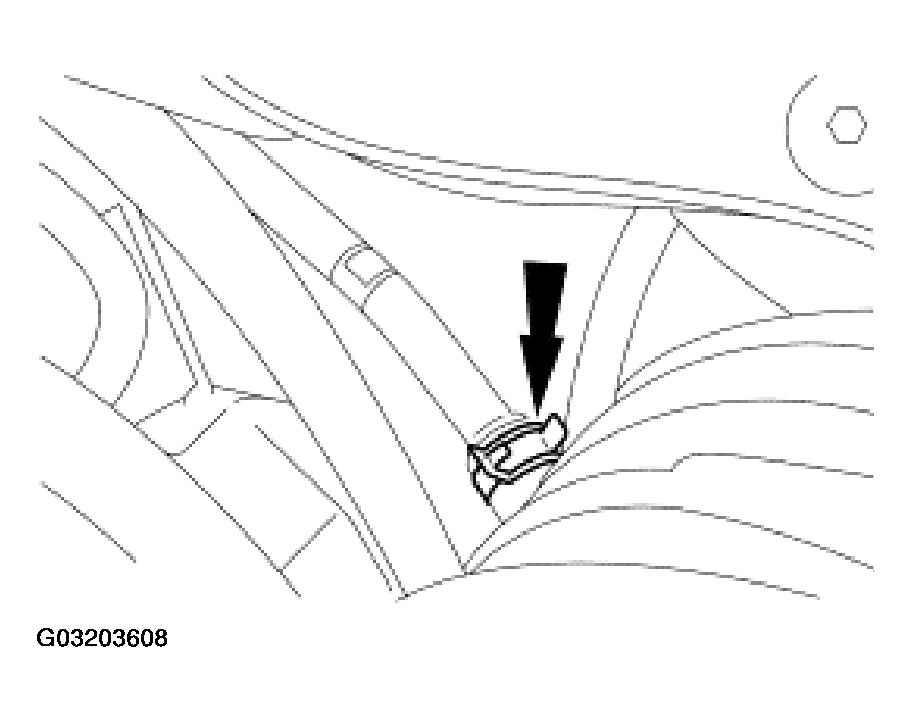

   Fig 2: Disconnecting Degas Return Hose From Degas Return Tube

   Courtesy of FORD MOTOR CO.
NOTE: When positioning the degas bottle aside it will be necessary to reroute the degas bottle lower hose in front of the brake booster.
2. Position the degas bottle aside.

Item 8: Wiper Motor Bolts Removal Note

1. Position the windshield wiper mounting arm and pivot shaft assembly aside, and loosen the upper windshield wiper motor bolt.

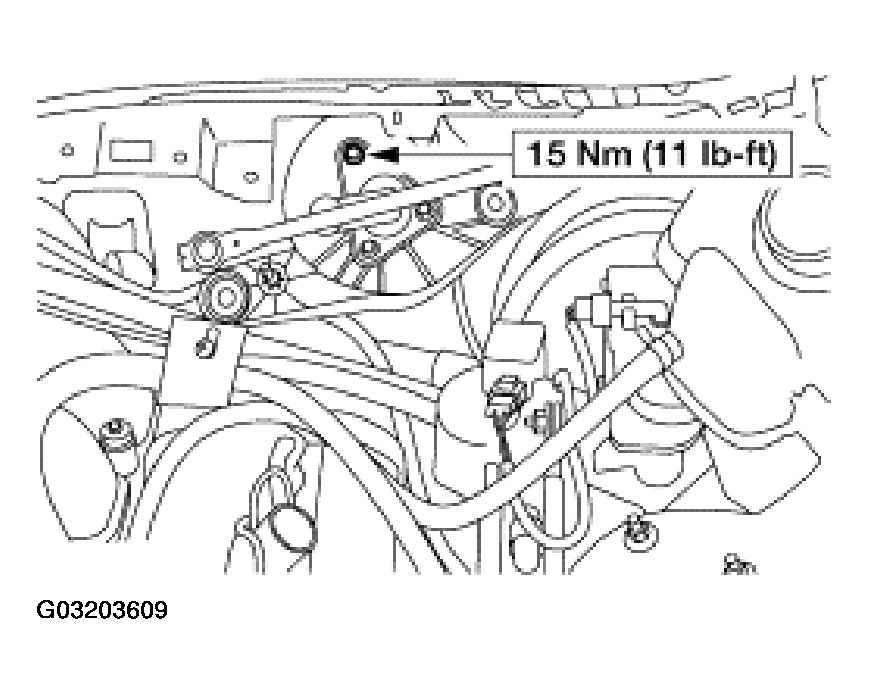

   Fig 3: Loosening Upper Windshield Wiper Motor Bolt

   Courtesy of FORD MOTOR CO.
2. Remove the windshield wiper mounting arm and pivot shaft assembly.
3. Rotate wiper output arm to the six o'clock position.
NOTE: To remove the lower wiper motor bolts it is necessary to rotate the bottom of the windshield wiper mounting arm and pivot shaft assembly upward.
4. Remove the two lower wiper motor bolts.

Item 9: Mounting Arm And Pivot Shaft Assembly Removal Note

1. Remove the mounting arm and pivot shaft assembly.
   • Disconnect the electrical connector.
