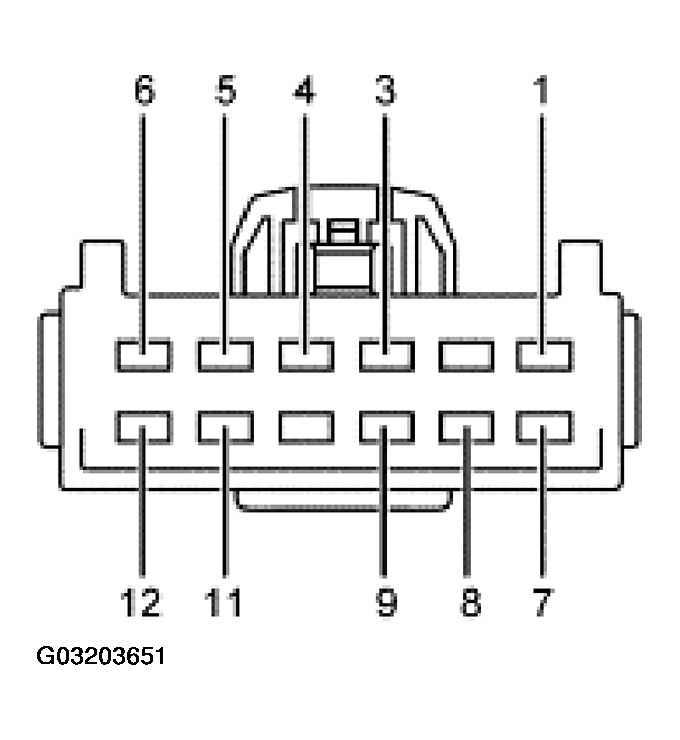

Driver Power Seat Control Switch C360
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
PINS CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 31-AH2 (BK) Ground | Continuity to power seat switch, less than 5 ohms. |
| 3 | CKT 32-AH37 (WH/GN) Forward output circuit from the power seat switch to power seat motor | Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in forward. |
| 4 | CKT 33-AH38 (YE/BK) Front down output circuit from the power seat switch to power seat motor | Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in front down. |
| 5 | CKT 32-AH38 (WH/BK) Front up output circuit from the power seat switch to power seat motor | Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in front up. |
| 6 | CKT 30-AH35 (RD) Battery voltage from rear RPDB | Greater than 10 volts at all times. |
| 7 | CKT 33-AH36 (YE/RD) Rearward recline output circuit from the power seat switch to power seat motor | Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in rearward recline. |
| 8 | CKT 32-AH41 (WH/VT) Rear up output circuit from the power seat switch to power seat motor | Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in rear up. |
| 9 | CKT33-AH41 (YE/VT) Rear down output circuit from the power seat switch to power seat motor | Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in rear down. |
| 11 | CKT 33-AH37 (YE/GN) Rearward output circuit from the power seat switch to power seat motor | Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in rearward. |
| 12 | CKT 32-AH36 (WH/RD) Forward recline output circuit from the power seat switch to power seat motor | Less than 5 ohms to the power seat motor and greater than 10,000 ohms to ground when disconnected. Greater than 10 volts when connected and switch is in forward recline. |
