Passenger Climate Controlled Seat Module C3036a
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

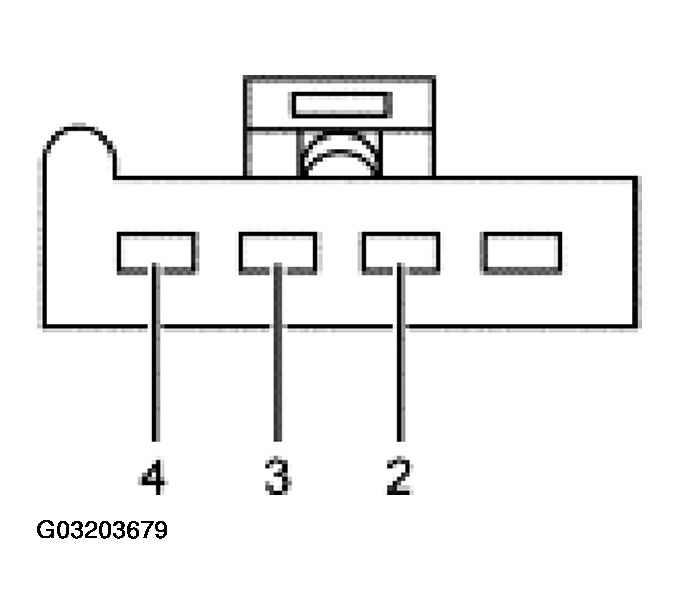

PINS CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | CKT 20-HC22 (PK/YE) Battery voltage from PJB | Greater than 10 volts when switch is in the run position. |
| 3 | CKT 31-HC22 (BK/YE) Ground | Continuity to ground, less than 5 ohms. |
| 4 | CKT 30-HC22 (RD/YE) Battery voltage from rear PDB | Greater than 10 volts at all times. |
