Removal And Installation: Hose: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: While repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.

NOTE: When connecting a fitting with a Teflon® seal, a new seal must be installed.

Using the special tool, install a Teflon® seal over a fitting.
- Fill and leak check the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .

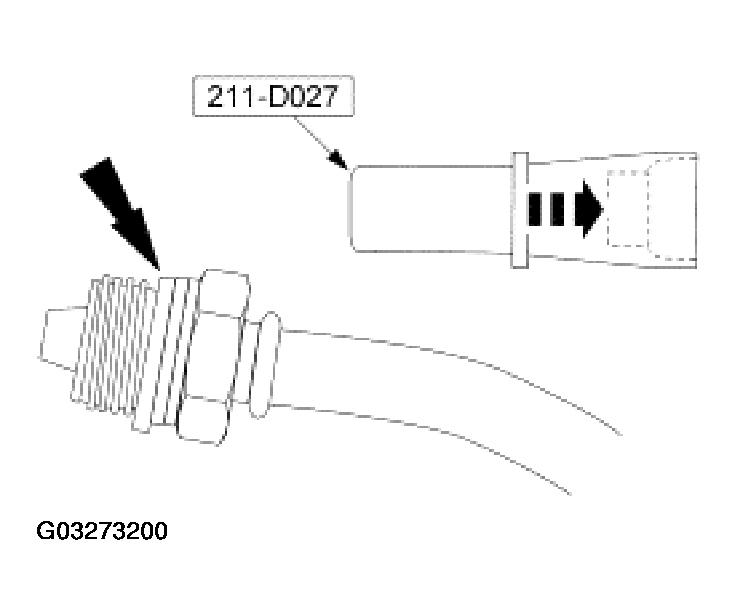

  Fig 1: Installing Teflon® Seal Over Fitting
  Courtesy of FORD MOTOR CO.
