Camshaft Runout

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

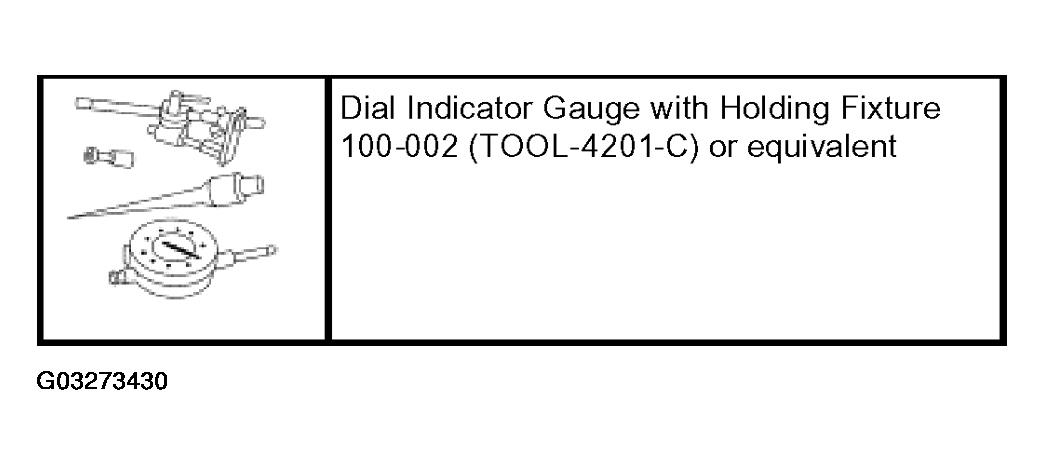

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

NOTE: Camshaft journals must be within specifications before checking runout.

Use a Dial Indicator Gauge with Holding Fixture to measure the camshaft runout.
- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading.
- For additional information, refer to the specification chart in the appropriate ENGINE article.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE article.

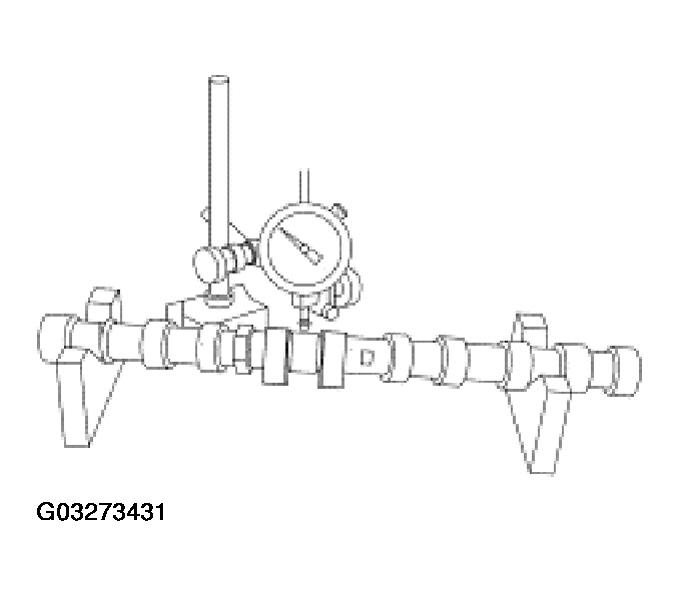

  Fig 2: Measuring Camshaft Runout
  Courtesy of FORD MOTOR CO.
