Lower Engine Block

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

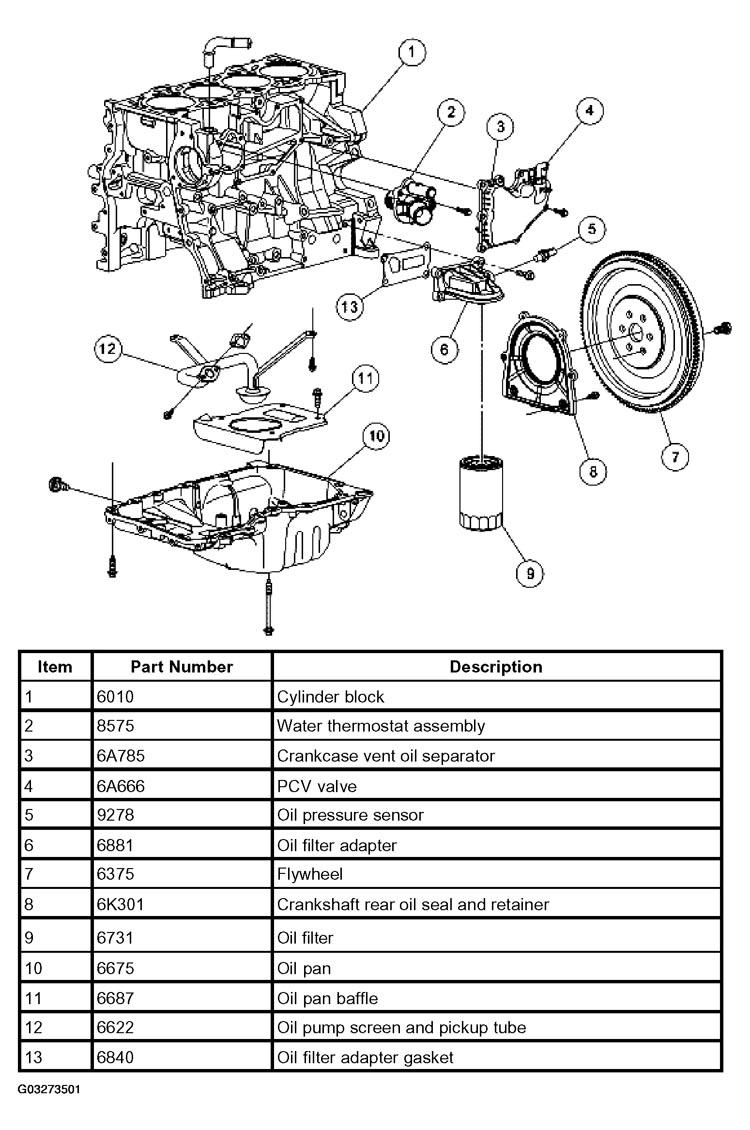

Fig 1: Exploded View Of Lower Engine Block

Courtesy of FORD MOTOR CO.
