Engine Support Insulators: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front springs. For additional information, refer to FRONT - 2WD .
  2. Remove the push pins and position the right inner fender splash shield out of the way.

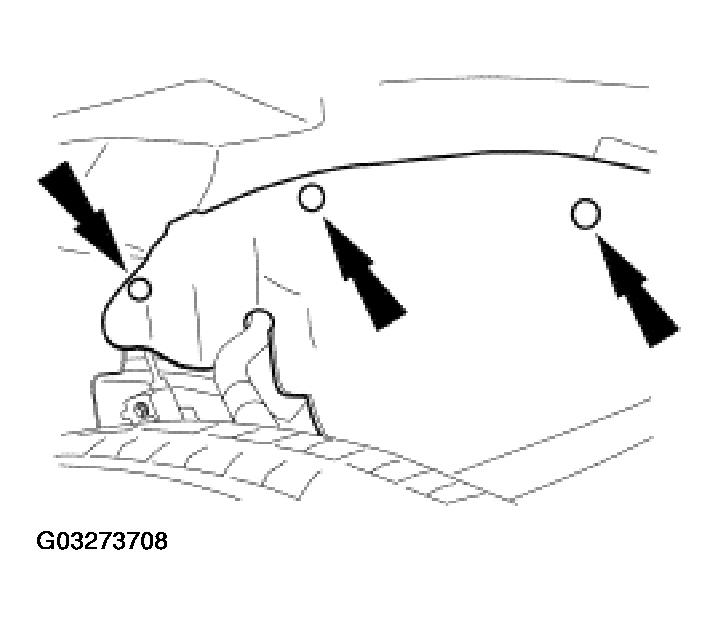

    Fig 1: Removing Right Inner Fender Splash Shield Push Pins
    G03273708Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
  4. Remove the clutch fan. For additional information, refer to ENGINE COOLING .
    5. NOTE: Right hand shown, left hand similar.

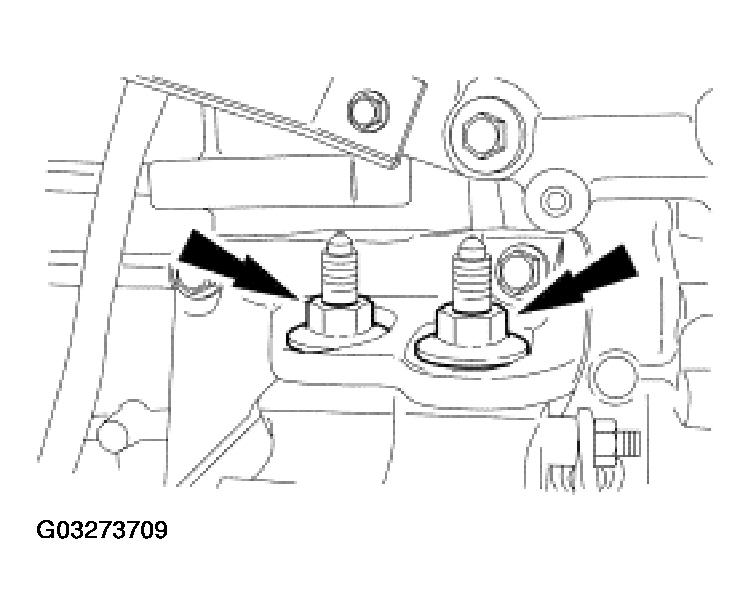

    Fig 2: Removing RH And LH Engine Support Insulator Nuts
    G03273709Courtesy of FORD MOTOR CO.
  5. Remove the RH and LH engine support insulator nuts.
  6. Install the Lifting Eyes.
  7. Raise the engine with the 3-Bar Engine Support Kit.
  8. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
    9. NOTE: Right hand shown, left hand similar.

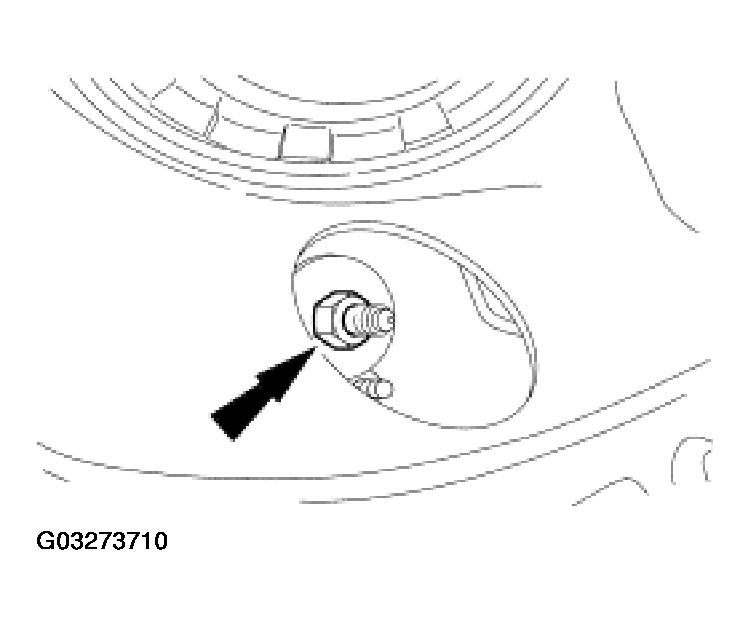

    Fig 3: Removing Engine Support Insulators
    G03273710Courtesy of FORD MOTOR CO.
  9. Remove the nuts and the engine support insulators.
