Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect output shaft speed (OSS) sensor electrical connector.

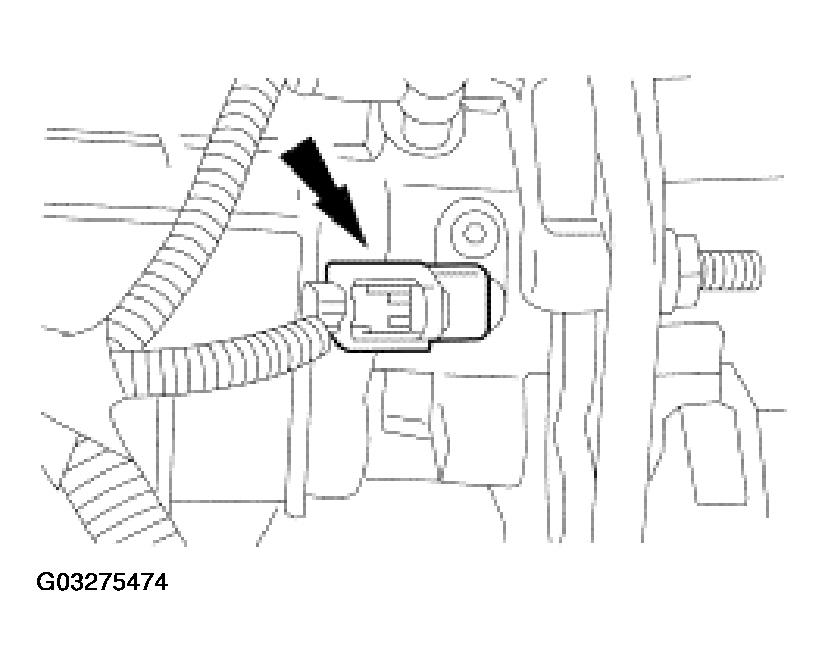

Fig 1: Disconnecting Output Shaft Speed (OSS) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove OSS sensor.
1. Remove the OSS sensor screw.
2. Remove the OSS sensor from the transmission.
  - Inspect the OSS sensor O-ring for damage. If damaged, install a new O-ring.

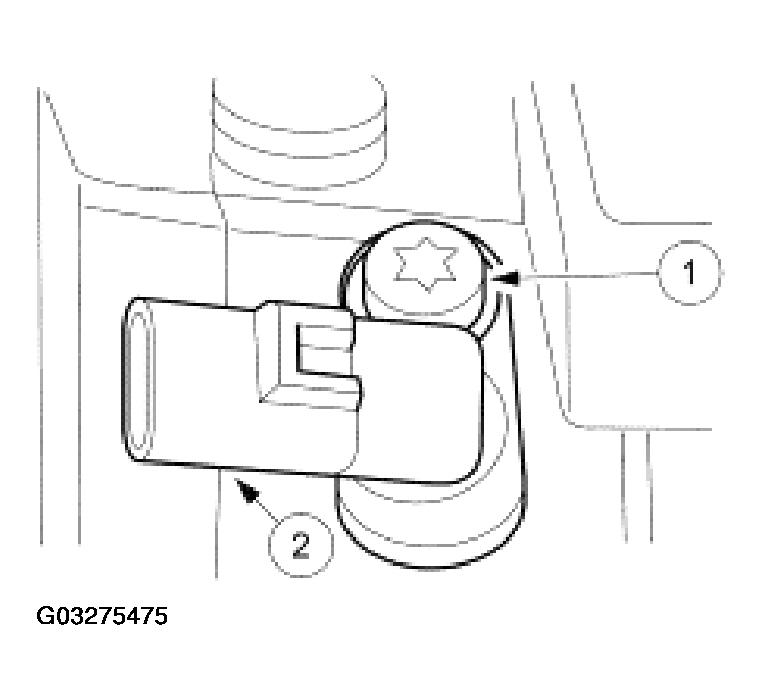

    Fig 2: Removing OSS Sensor
    Courtesy of FORD MOTOR CO.
