Section 480 (Manual Transmission): Assembly: Transmission: Notes

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

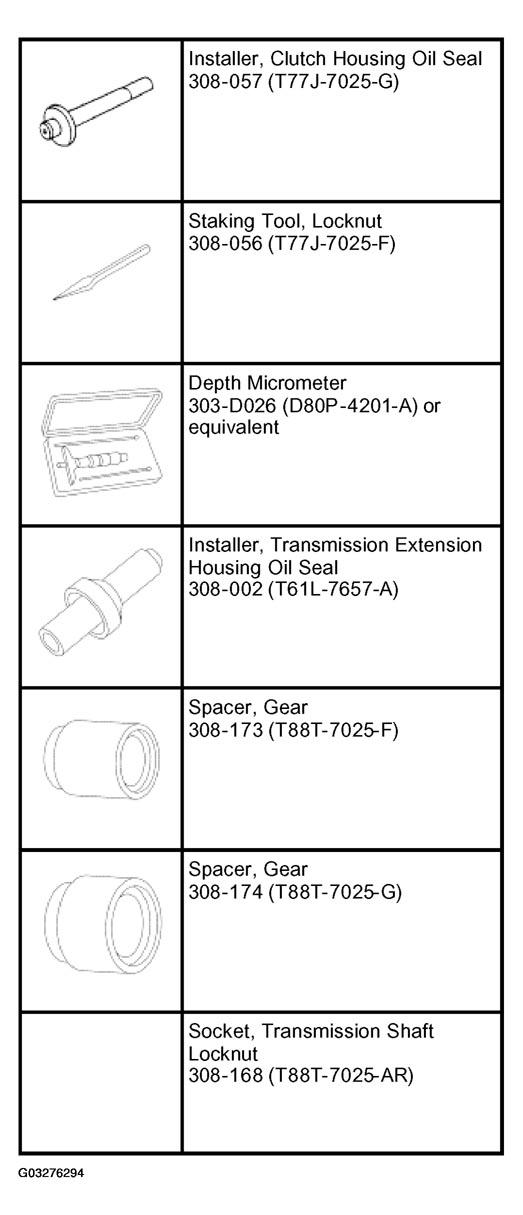

Fig 1: Identifying Special Tool (1 Of 2)

Courtesy of FORD MOTOR CO.

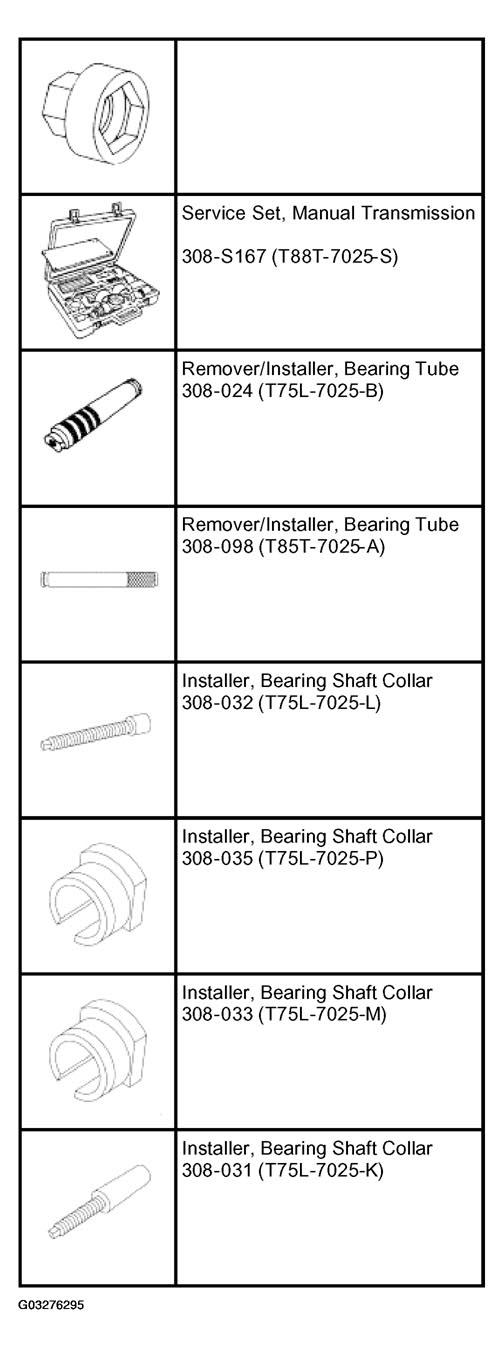

Fig 2: Identifying Special Tool (2 Of 2)

Courtesy of FORD MOTOR CO.
