Transmission Internal Components - Disassembled View

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

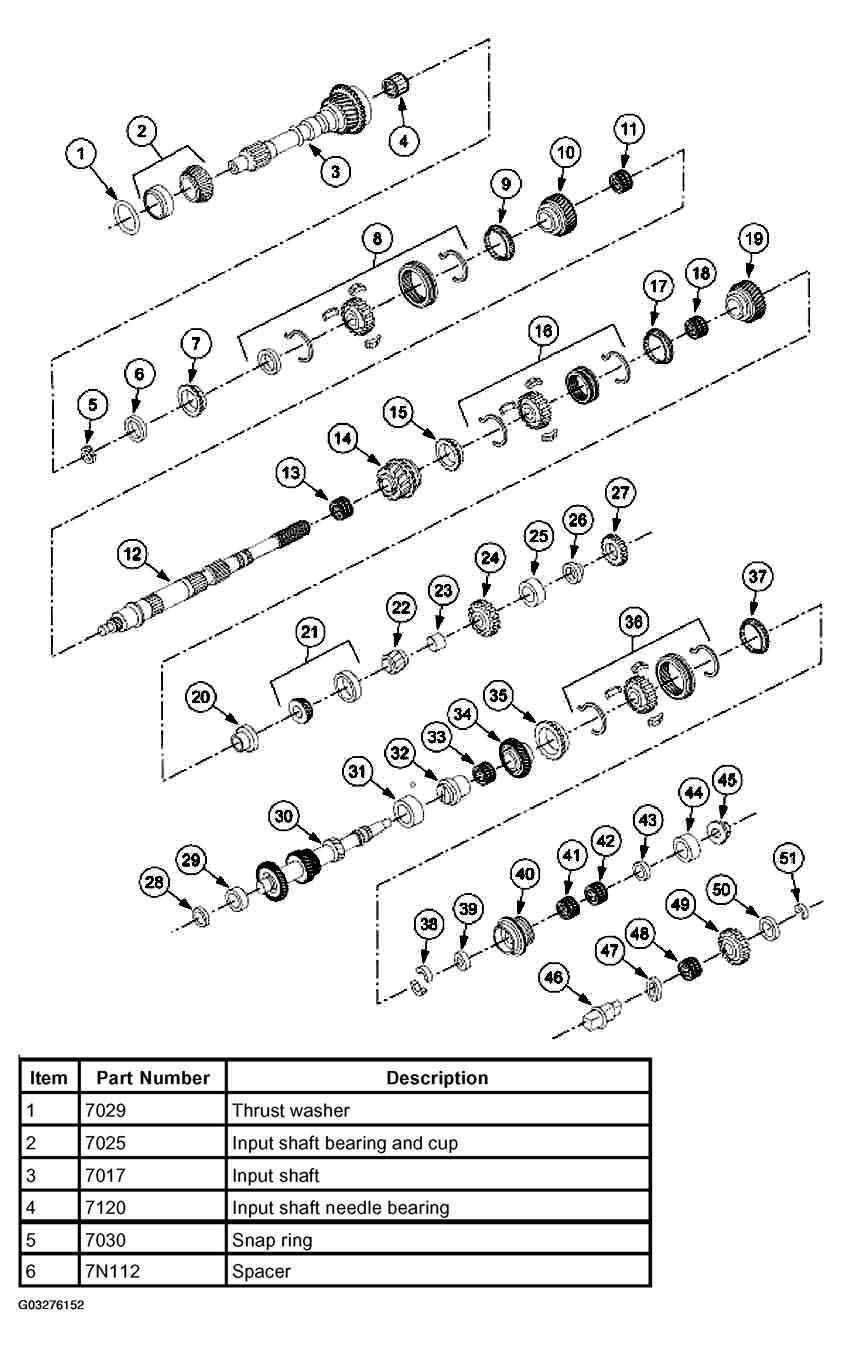

Fig 1: Exploded View Of Transmission Internal Components (Items 1-6)

Courtesy of FORD MOTOR CO.

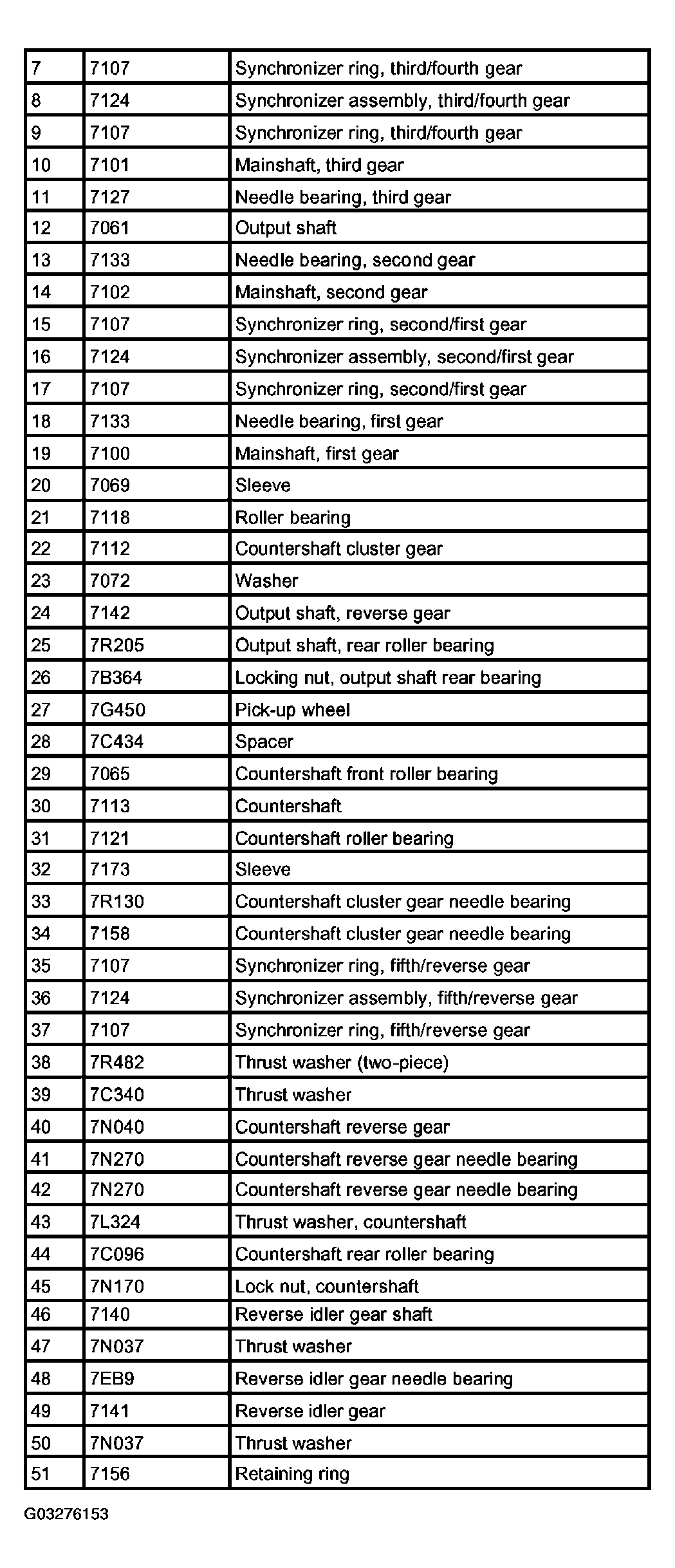

Fig 2: Transmission Internal Components Reference Table (Items 7-51)

Courtesy of FORD MOTOR CO.
