Disassembly And Assembly Of Subassemblies: Synchronizers: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Mark parts for assembly.

Disassemble the synchronizer.
1. Remove the retaining spring.
2. Flip the synchronizer over and remove the opposite retaining spring.
3. Remove the three insert keys.
4. Remove the sleeve.

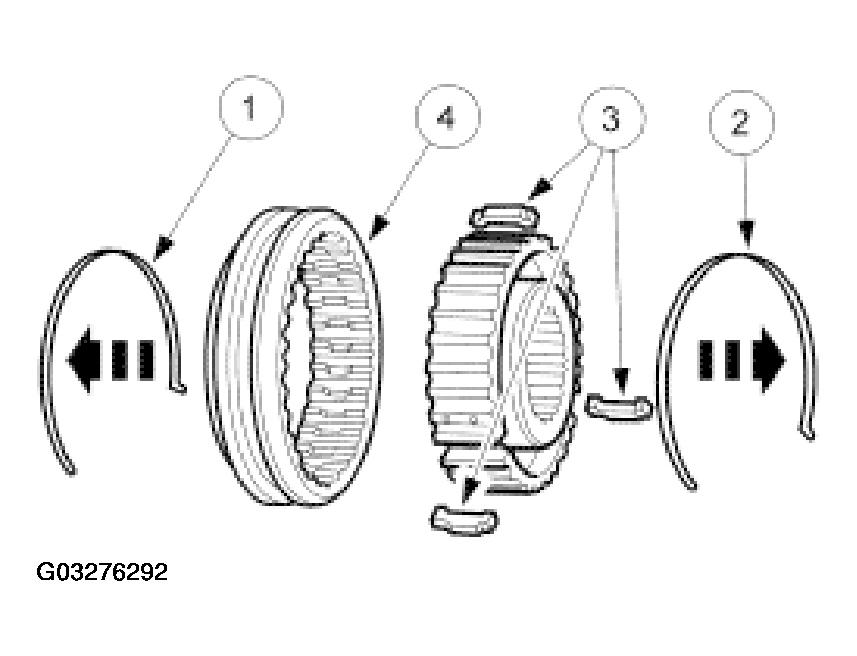

  Fig 1: Disassembling Synchronizer
  Courtesy of FORD MOTOR CO.
Inspect all the synchronizer components for wear and damage.
