Extension Housing: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the extension housing.

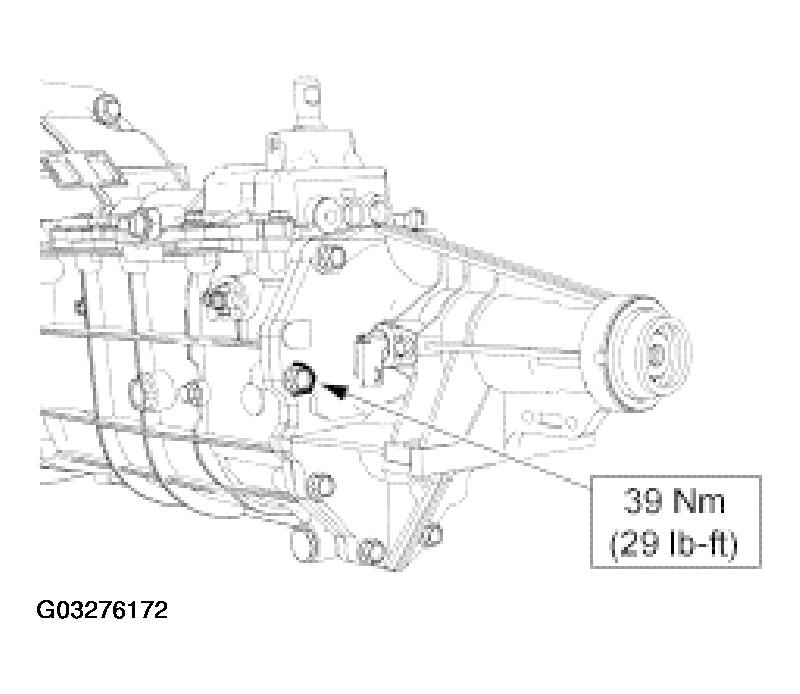

Fig 1: Installing Extension Housing
Courtesy of FORD MOTOR CO.
Install the transmission mount.
1. Position the exhaust bracket.
2. Install the bolts.

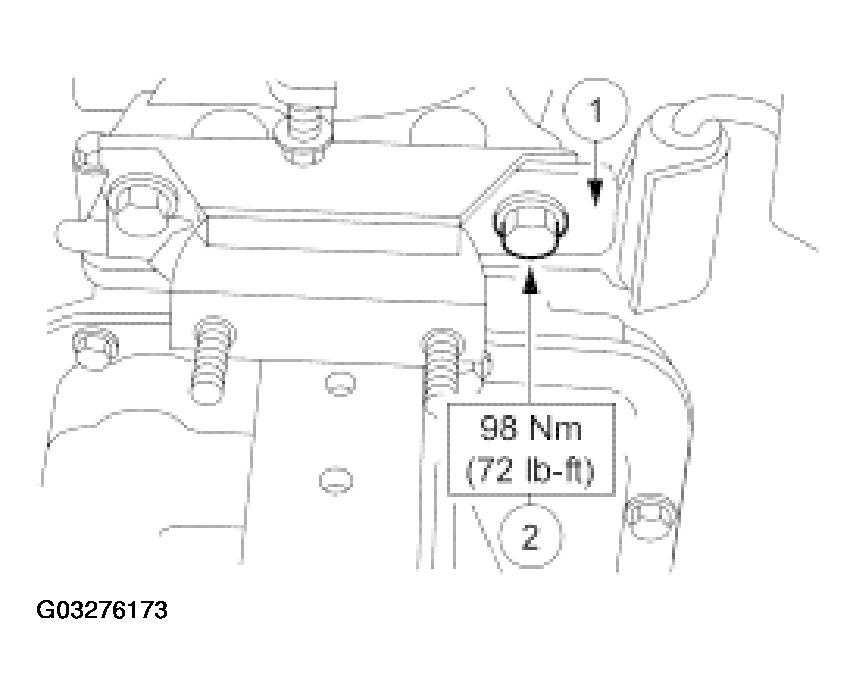

  Fig 2: Installing Transmission Mount
  Courtesy of FORD MOTOR CO.
Position the crossmember and install the six bolts and nuts.

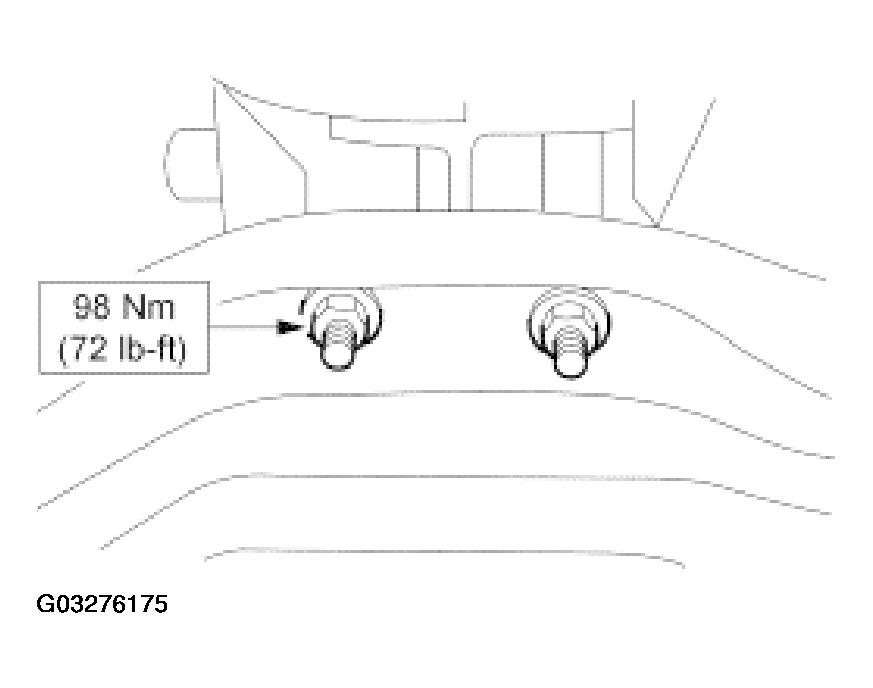

Fig 3: Installing Crossmember
Courtesy of FORD MOTOR CO.
Remove High-Lift Transmission Jack.
Install the nuts.

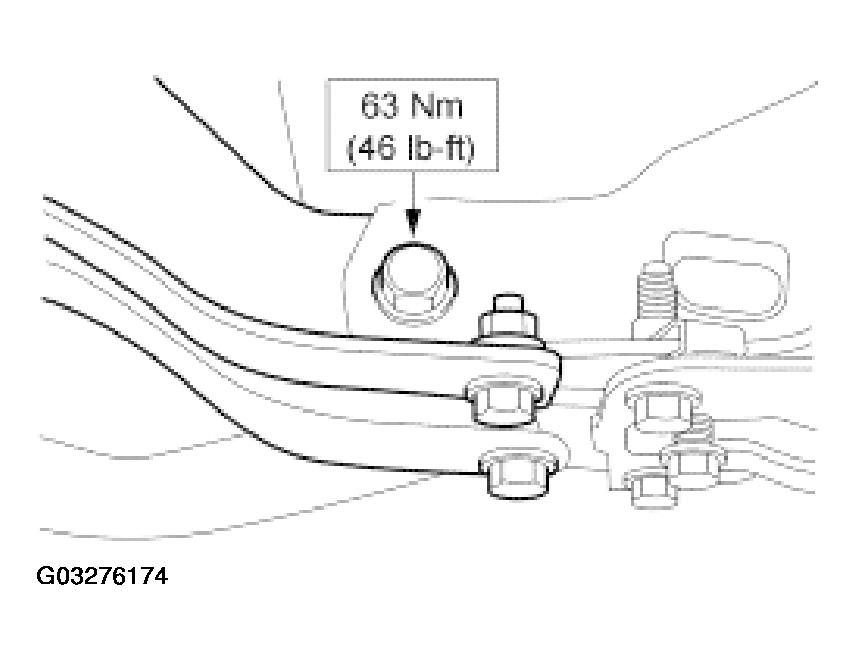

Fig 4: Installing Transmission Mount Nuts
Courtesy of FORD MOTOR CO.
Install the transfer case, if equipped. For additional information, refer to TRANSFER CASE - AUTOMATIC SHIFT .

NOTE: To maintain initial driveshaft balance, align the index marks on the driveshaft and the rear axle pinion flange made during removal.

Install the rear driveshaft. For additional information, refer to DRIVESHAFT .
Install the drain plug.

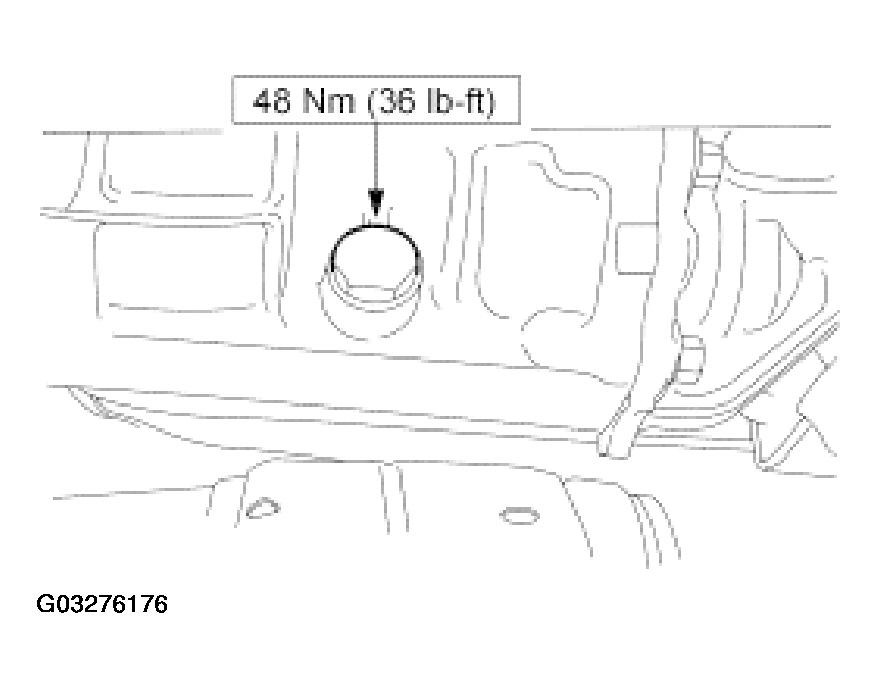

Fig 5: Installing Drain Plug
Courtesy of FORD MOTOR CO.
Refill the transmission with the specified amount of fluid.
- Use MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.
Lower the vehicle.
