Extension Housing: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, raise and support the vehicle. For additional information, refer to JACKING & LIFTING .

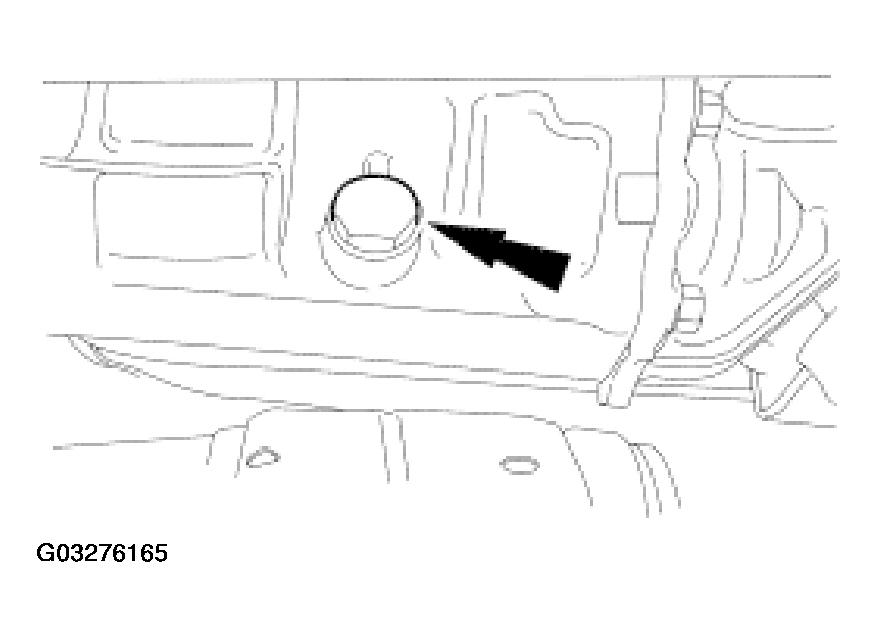

Remove the drain plug and drain the transmission fluid.

Fig 1: Removing Drain Plug
Courtesy of FORD MOTOR CO.

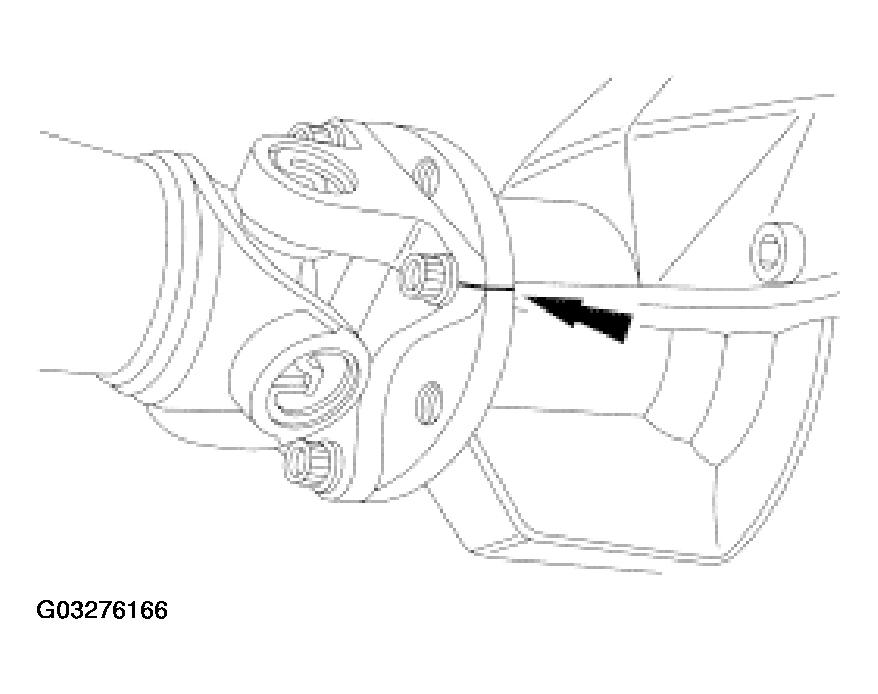

NOTE: To maintain initial driveshaft balance, index-mark the driveshaft to the rear axle pinion flange so it can be installed in its original position.

Fig 2: Index-Marking Rear Driveshaft

Courtesy of FORD MOTOR CO.

Remove and support the rear driveshaft. For additional information, refer to DRIVESHAFT .
Remove the transfer case, if equipped. For additional information, refer to TRANSFER CASE - AUTOMATIC SHIFT .

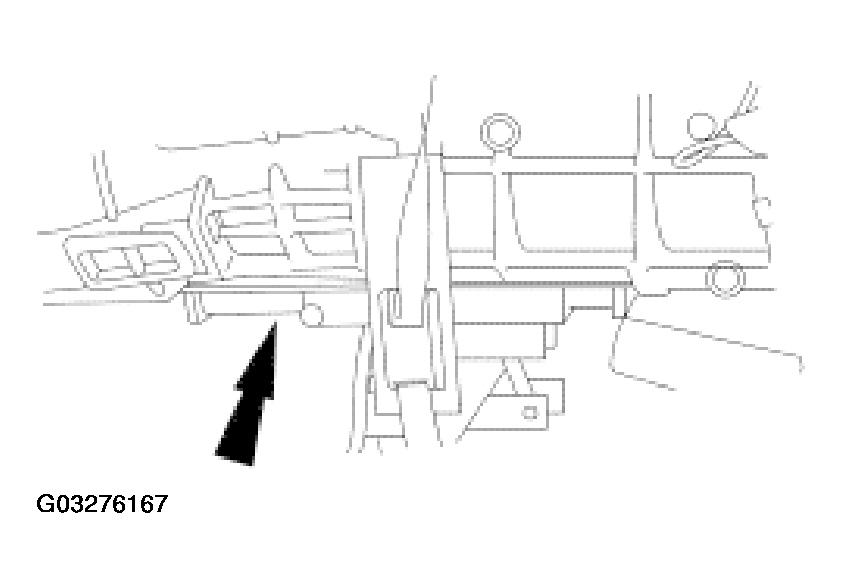

Using the special tool, support the transmission.
- Secure the transmission with a strap.

  Fig 3: Supporting Transmission
  Courtesy of FORD MOTOR CO.

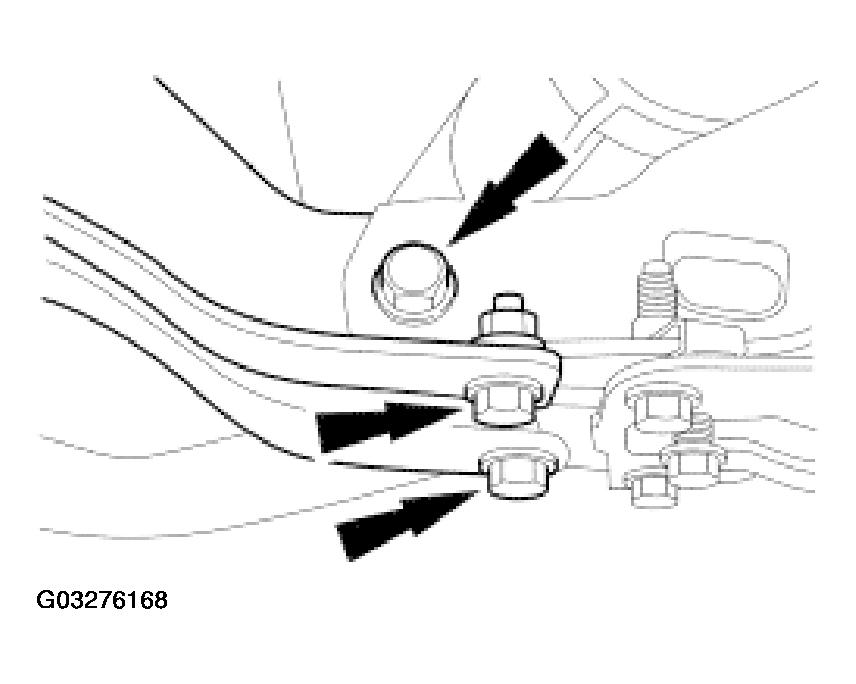

Remove the six crossmember bolts.

Fig 4: Removing Crossmember Bolts
Courtesy of FORD MOTOR CO.

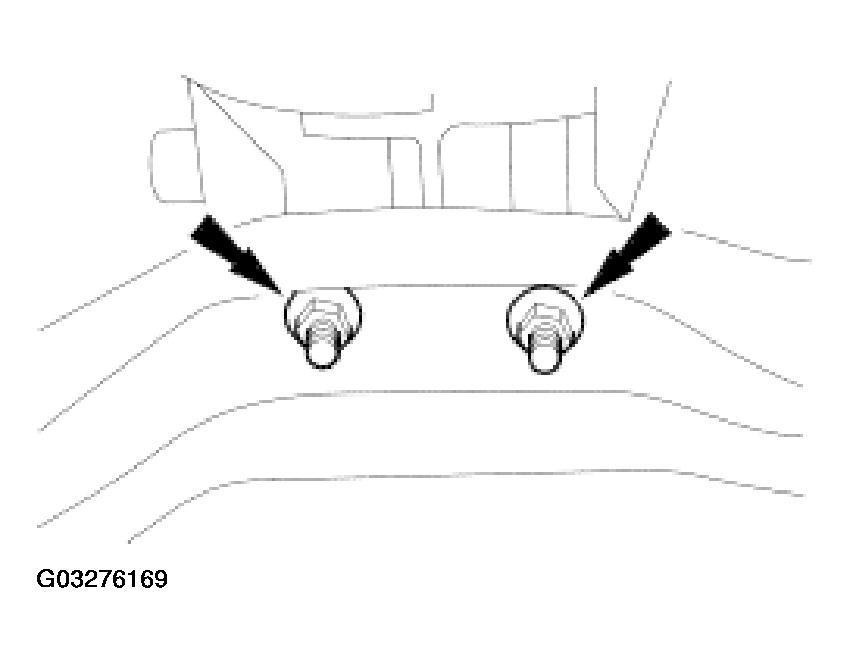

Remove the nuts, then remove the crossmember.

Fig 5: Removing Transmission Mount Nuts
Courtesy of FORD MOTOR CO.

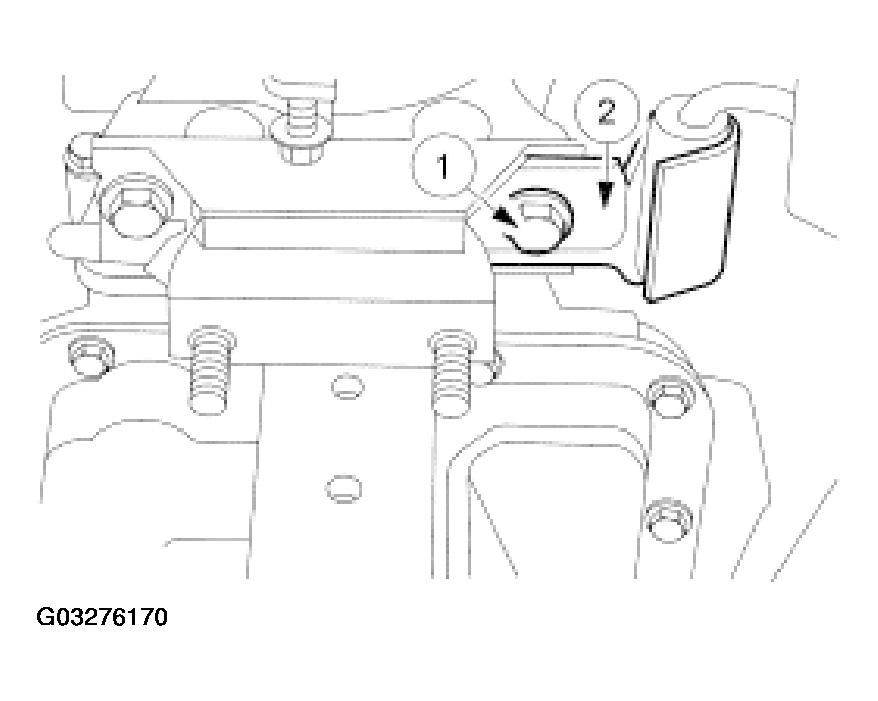

Remove the transmission mount.
1. Remove the bolts.
2. Reposition the exhaust mounting bracket.

  Fig 6: Removing Transmission Mount
  Courtesy of FORD MOTOR CO.

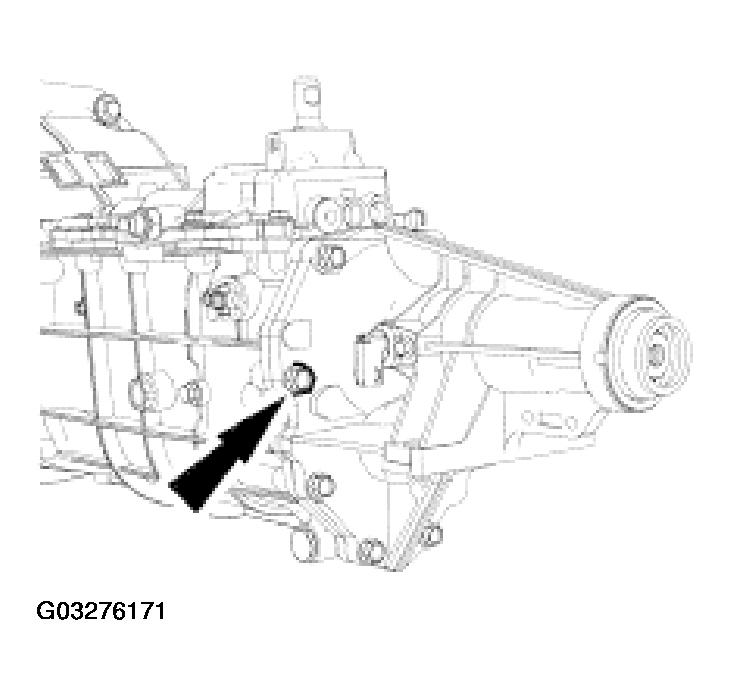

Remove the extension housing.
- 4x2 shown, 4x4 similar.

  Fig 7: Removing Extension Housing
  Courtesy of FORD MOTOR CO.
