Front Seat Backrest - 60 Percent Bench: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

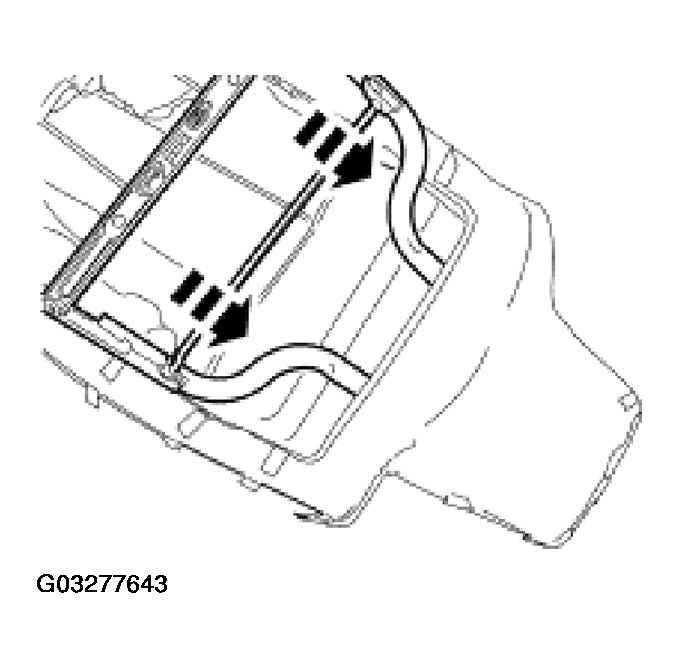

Slide the backrest frame into the backrest foam pad.

Fig 1: Installing Backrest Frame
Courtesy of FORD MOTOR CO.

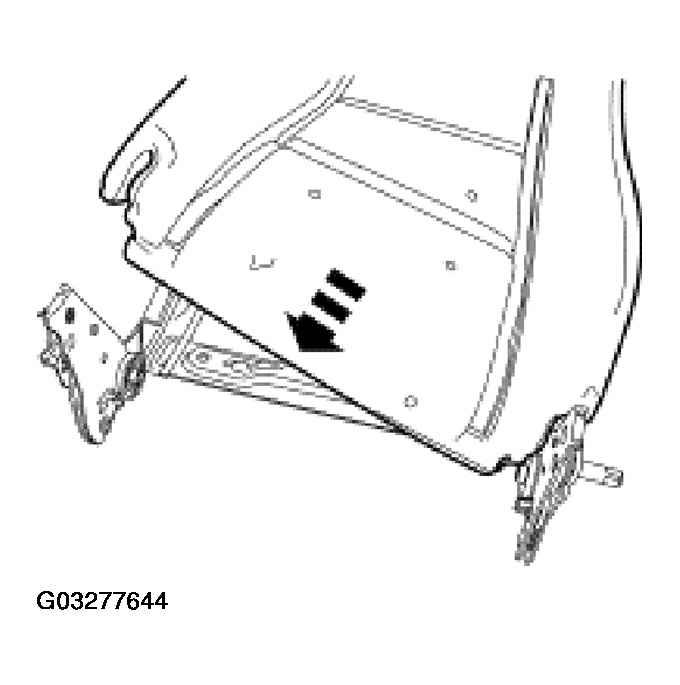

Install the lower end of the backrest foam pad on the backrest frame.

Fig 2: Installing Lower End Of Backrest Foam Pad On Backrest Frame
Courtesy of FORD MOTOR CO.

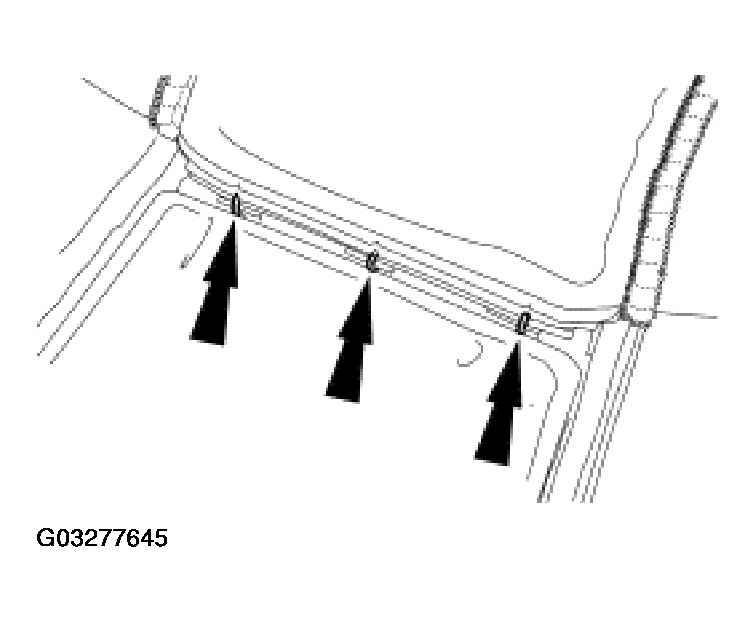

Install the backrest trim cover and install all of the hog rings.

Fig 3: Installing Hog Rings
Courtesy of FORD MOTOR CO.

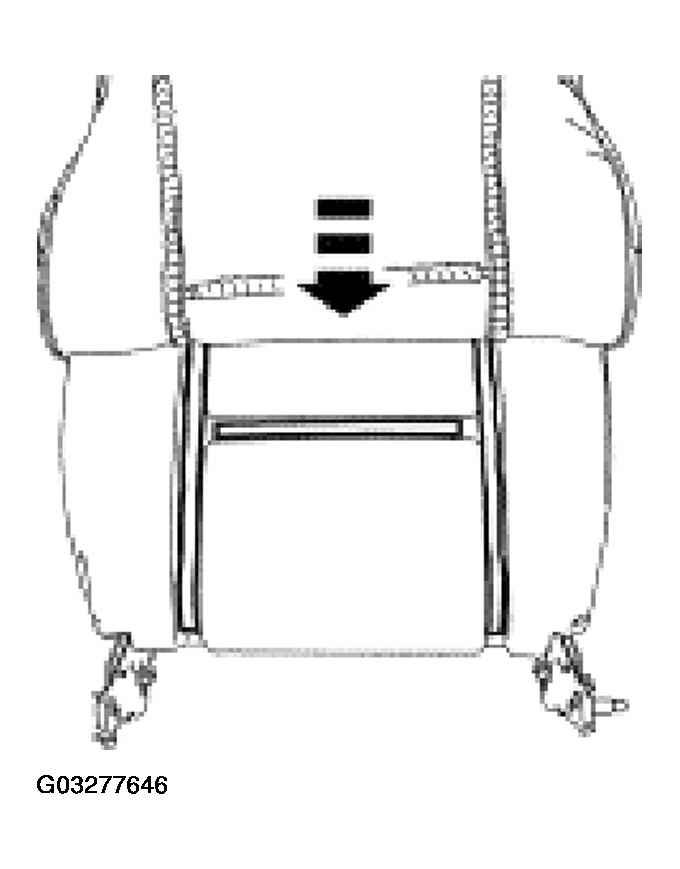

Pull the backrest trim cover down and secure the hook and loop fasteners to the backrest foam pad.

Fig 4: Installing Backrest Trim Cover
Courtesy of FORD MOTOR CO.

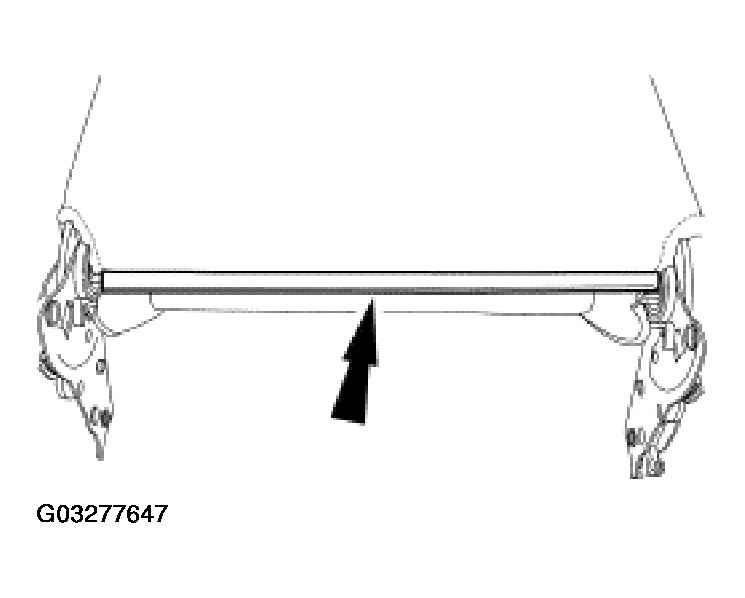

Attach the backrest J-clip.

Fig 5: Attaching Backrest J-Clip
Courtesy of FORD MOTOR CO.
Install the 60 percent seat backrest assembly. For additional information, refer to FRONT SEAT BACKREST - 60 PERCENT BENCH .
Install the 60 percent armrest. For additional information, refer to SEAT ARMREST - 60 PERCENT BENCH .
Install the affected seat. For additional information, refer to FRONT SEAT .
Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
