ABS Module C155
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

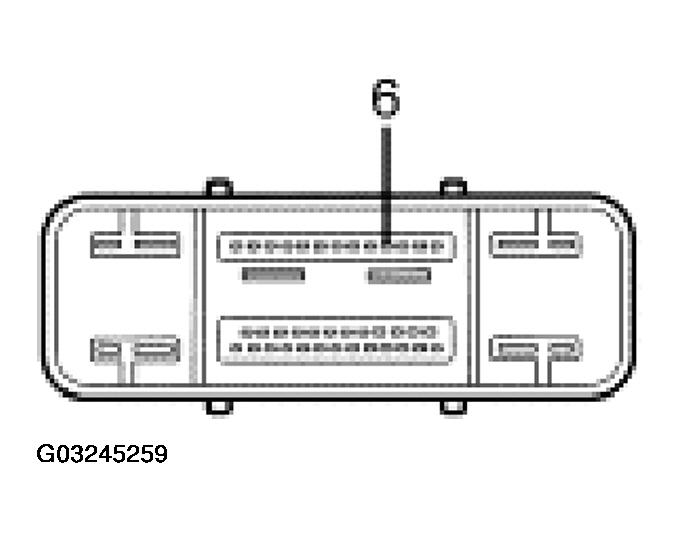

Courtesy of FORD MOTOR CO. C155 CIRCUIT REFERENCE
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 6 |
535 (LB/RD) brake pressure switch input |
B+ voltage with the ignition switch in the RUN position. |
