Clockspring C218b
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

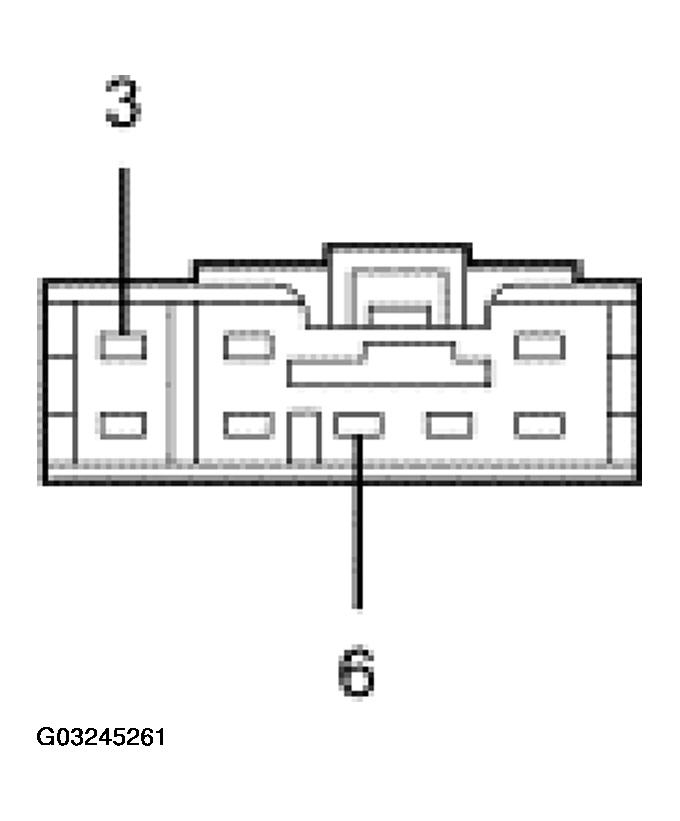

C218B CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 848 (DG/OG) speed control switch return circuit | 0 volts, less than 5 ohms between the clockspring and the speed control actuator, greater than 10,000 ohms between the clockspring and ground with the speed control actuator disconnected. |
| 6 | 151 (LB/BK) speed control switch command circuit | 0 volts, less than 5 ohms between the clockspring and the speed control actuator, greater than 10,000 ohms between the clockspring and ground with the speed control actuator disconnected. |
