Tube-O Fitting
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

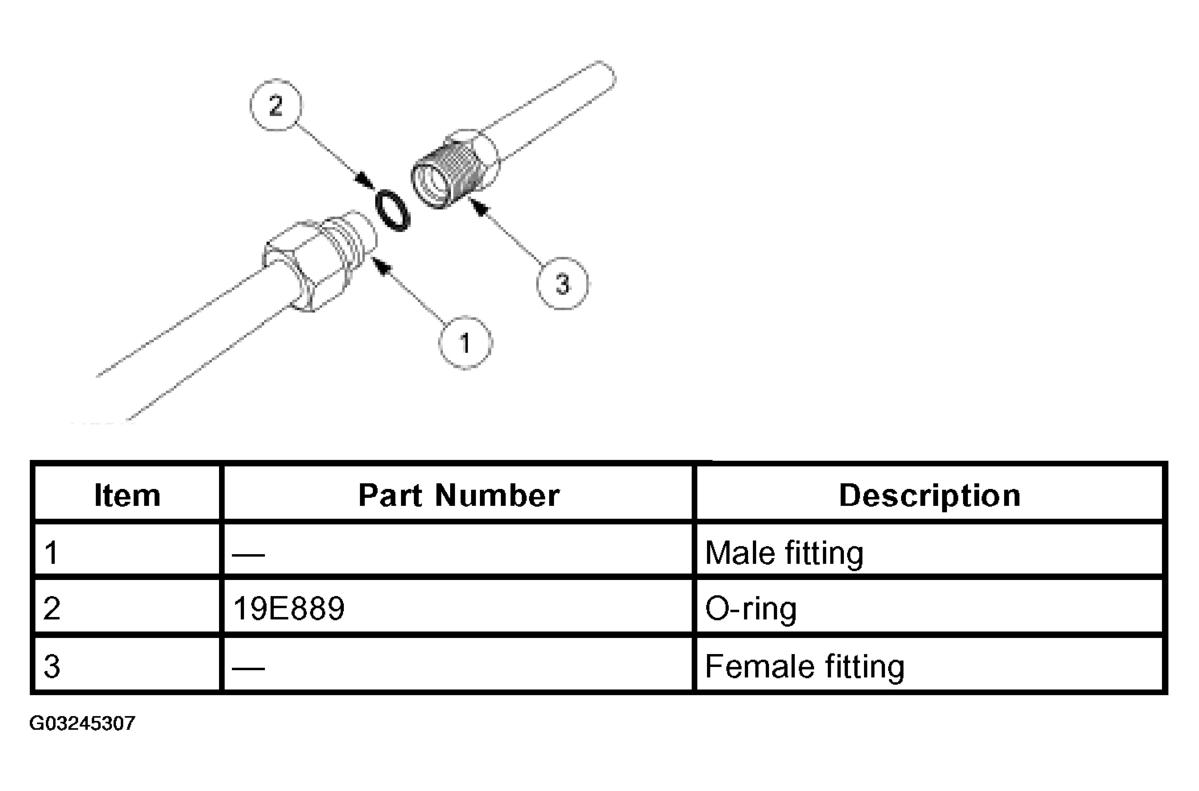

When disconnecting or connecting tube-o fittings, observe the following.
- The male and female portions of the fitting are retained with a nut.
- Support the female fitting with a wrench to prevent twisting of the tubes when disconnecting.
- An O-ring seal is installed around the tube on the male side of the fitting.
- Use only the O-ring seal listed in the Ford Master Parts Catalog.
