Auxiliary Blower Motor Resistor
Auxiliary Blower Motor Resistor
WARNING:
This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

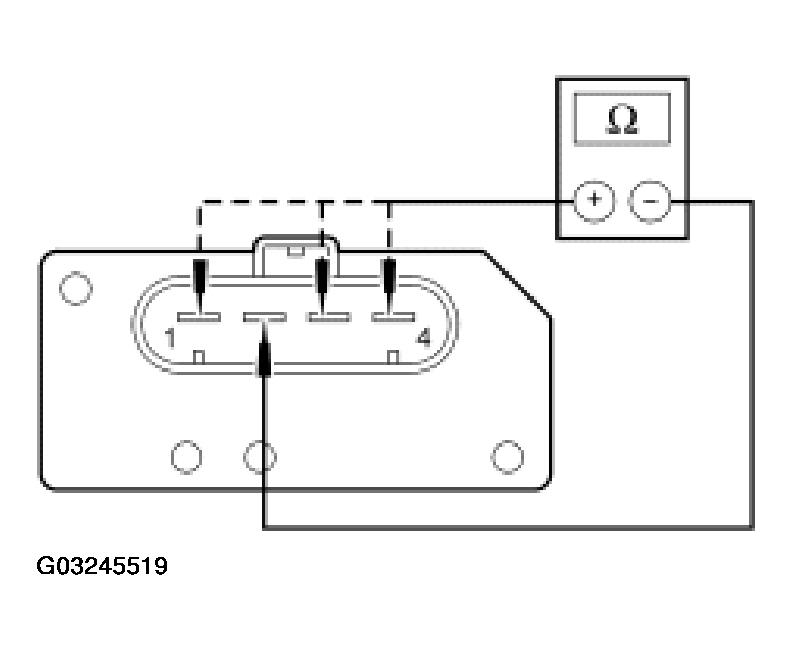

Fig 1: Checking Auxiliary Blower Motor Resistor Resistance
Courtesy of FORD MOTOR CO.
AUXILIARY BLOWER MOTOR RESISTANCE
Blower Motor Resistor Pins
Resistance
4 and 2
1.3-1.9 ohms
2 and 3
0 ohms
2 and 1
0.2-0.4 ohms
