Power Antenna Module C387
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

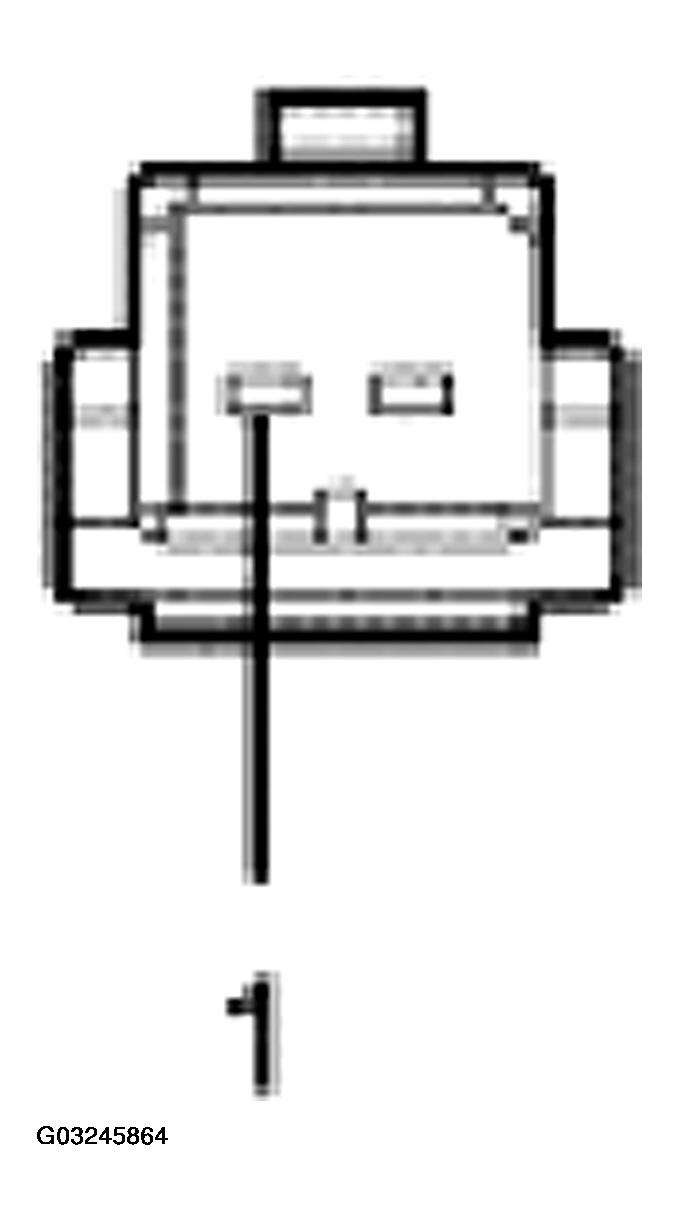

POWER ANTENNA MODULE C387
|
|
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
137 (YE/BK) B+ battery feed with the key in the ON and ACC positions |
Greater than 10 volts between the antenna module and ground. |
