Fog Lamp: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position.

Remove the front wheel and tire. For additional information, refer to WHEEL AND TIRE -- FRONT .

Remove the parts in the order indicated in the following illustration and table.

FOG LAMP PART REMOVAL STEPS

Part	Steps
Fender splash shield	1-3
Fog lamp bulb	1-4, 7
Fog lamp housing	1-6
Fog lamp lens	1-4, 8-9
Fog lamp bezel	1-4, 8-11

Fig 1: Fog Lamp Removal Sequence (Items 1-3)

Courtesy of FORD MOTOR CO.

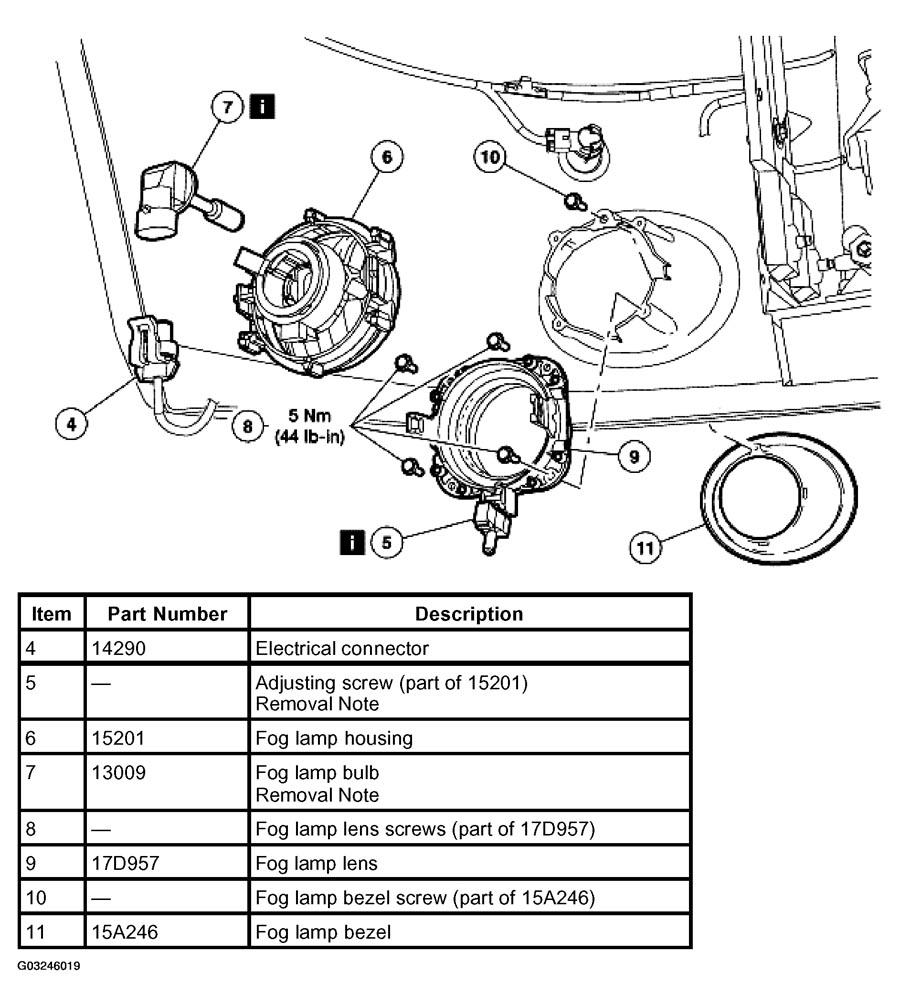

Fig 2: Fog Lamp Removal Sequence (Items 4-11)

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
