Removal And Installation: Headliner: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

If removing the headliner, remove the windshield side garnish mouldings, upper B-pillar, C-pillar and the D-pillar trim panels. For additional information, refer to INTERIOR TRIM PANELS .
If removing the headliner and if equipped, remove the overhead entertainment system. For additional information, refer to ENTERTAINMENT SYSTEM .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

Part	Steps
Overhead console	1,2
Sun visor(s)	3-6
Assist handle	7, 8
Headliner	1-15

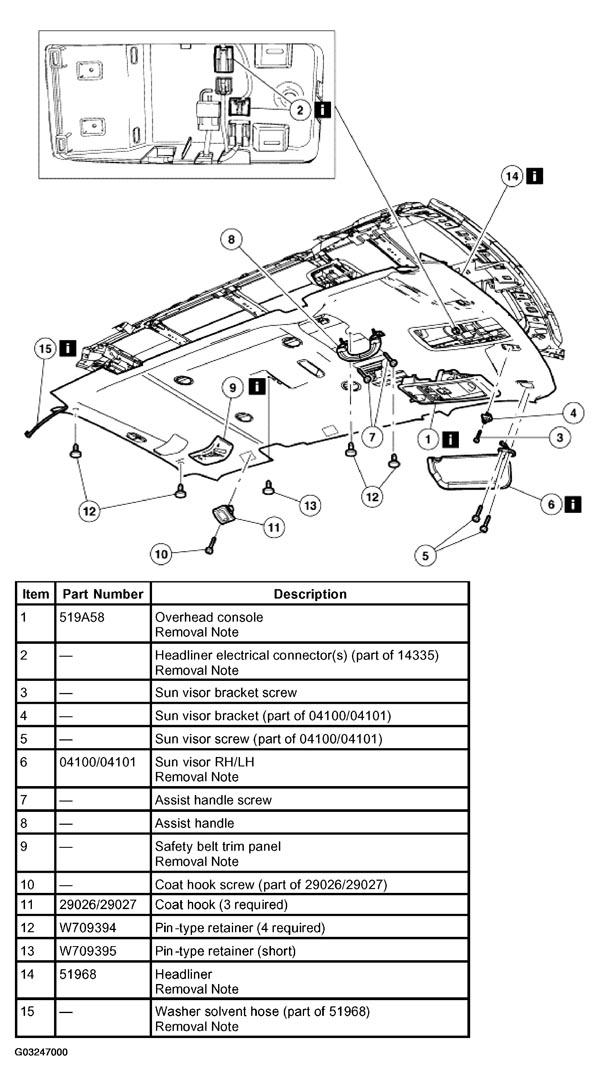

Fig 1: Removing Headliner

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
