Driver Seat Module - C341f
Driver Seat Module - C341f
WARNING:
This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

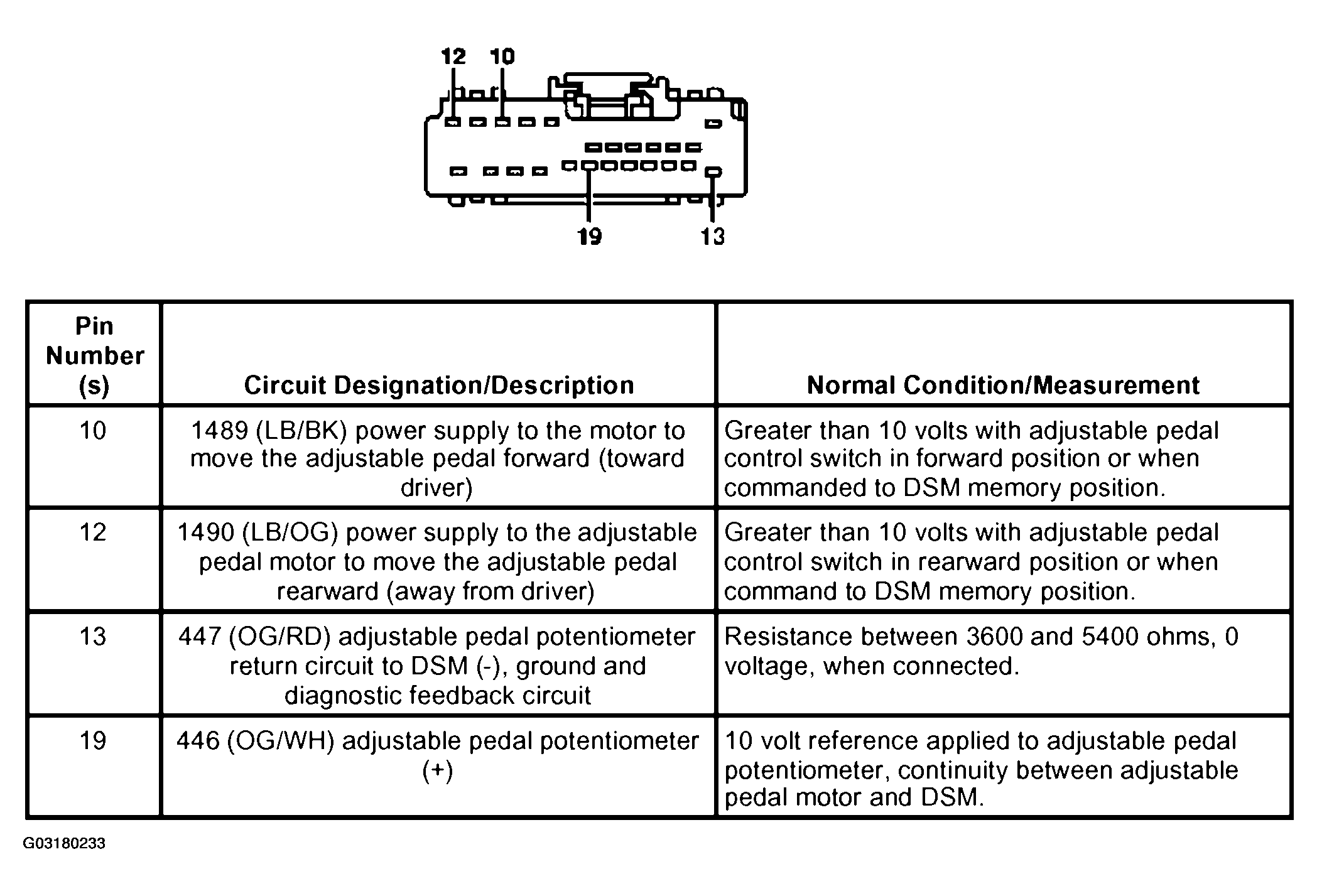

Fig 1: Identifying Driver Seat Module - C341F
Courtesy of FORD MOTOR CO.
