Brake Pedal Travel Sensor C148

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

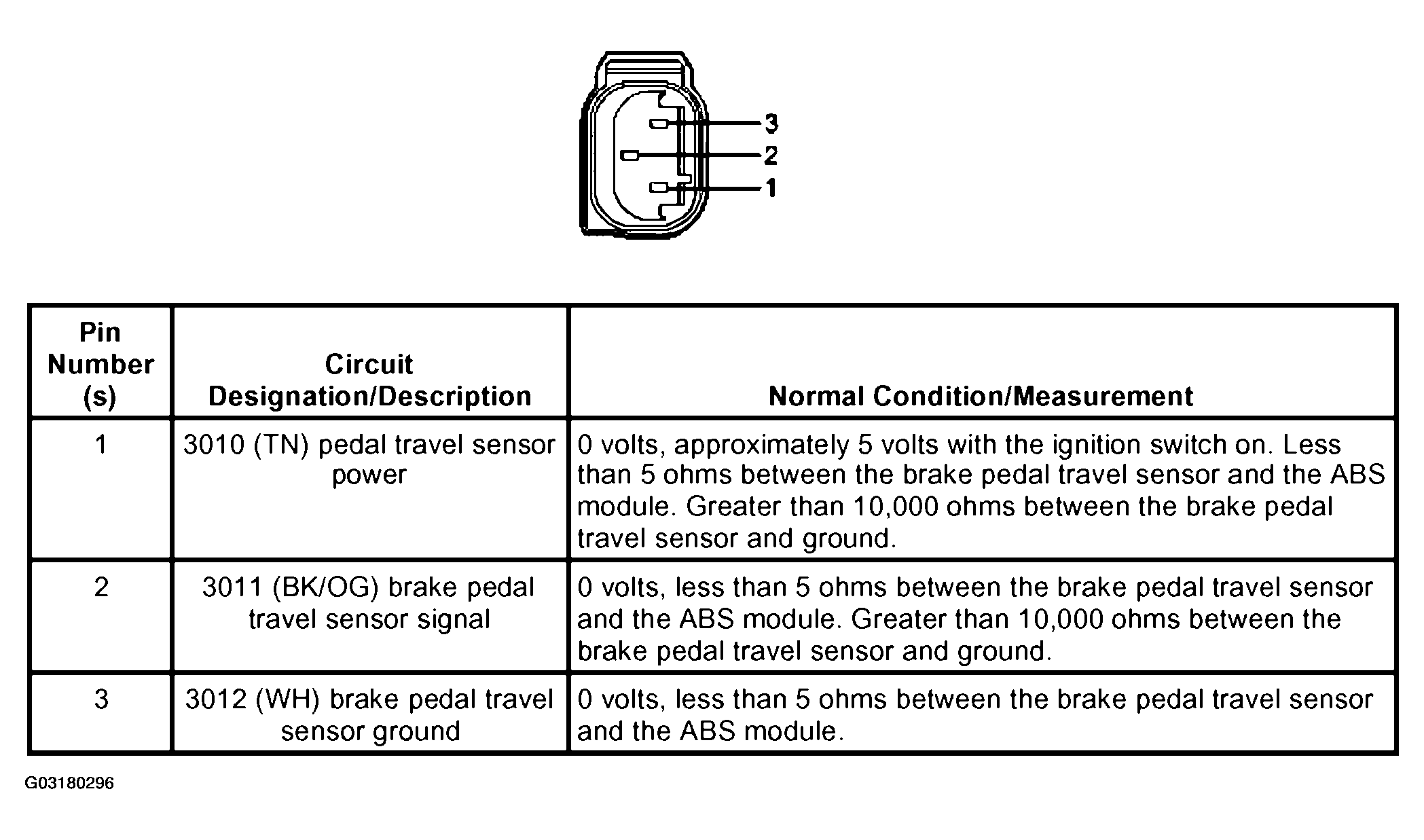

Fig 1: Identifying Brake Pedal Travel Sensor C148
G03180296Courtesy of FORD MOTOR CO.
