Section 548 (Anti-Lock Control System)
›
Diagnosis And Testing
›
Anti-Lock Control
›
Connector Circuit Reference Table
›
Speed Control Deactivator Switch C1025
Speed Control Deactivator Switch C1025
WARNING:
This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

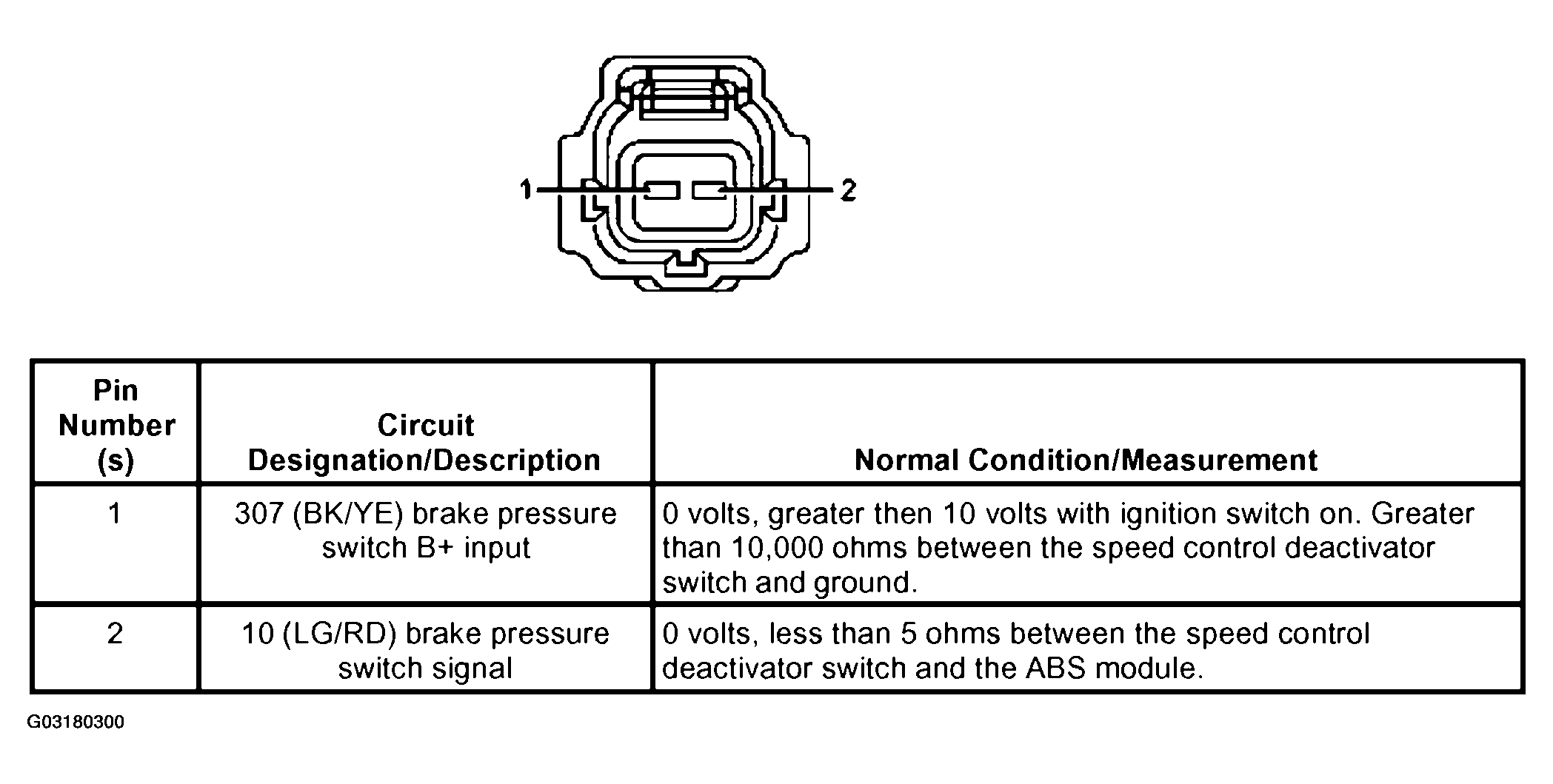

Fig 1: Identifying Speed Control Deactivator Switch C1025
Courtesy of FORD MOTOR CO.
