Engine - Front End

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

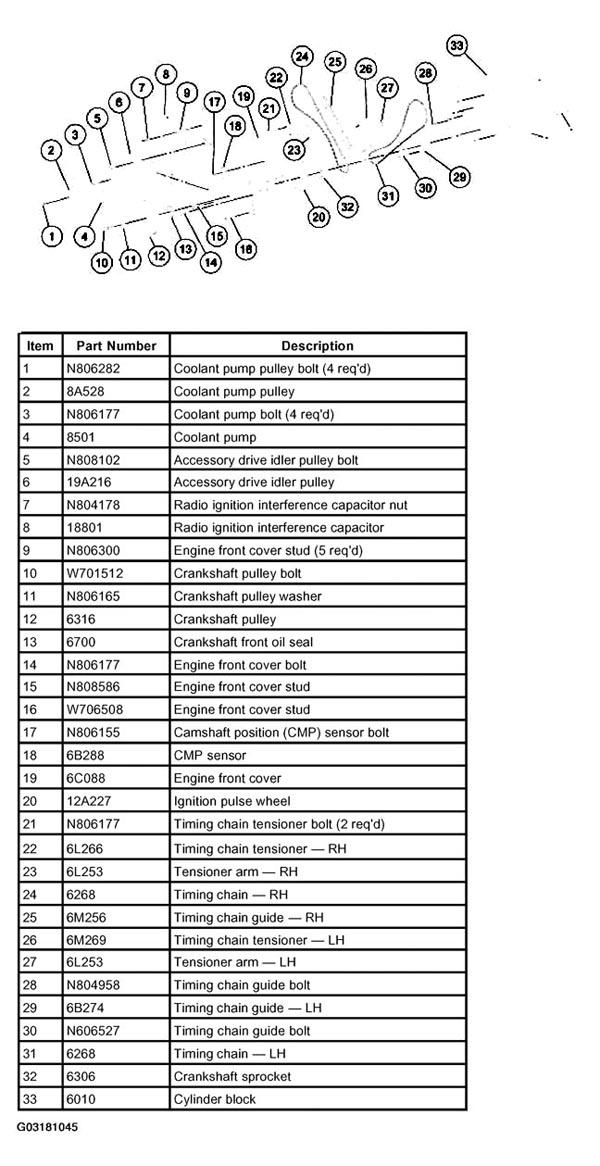

Fig 1: Exploded View Of Engine - Front End

Courtesy of FORD MOTOR CO.

WARNING: Do not operate the engine with the hood open until the fan blade has been first examined for possible cracks and separation.

The 4.6L (281 CID) is a V-8 engine with the following features:

Single overhead camshaft
Two valves per cylinder
Sequential multiport fuel injection (SFI)
Aluminum cylinder heads
Cast aluminum, 90-degree V-cylinder block
Individually chain-driven camshafts with a hydraulic timing chain tensioner on each timing chain
Electronic ignition system with eight ignition coils
