Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble the parts in the order indicated in the following illustration and table.

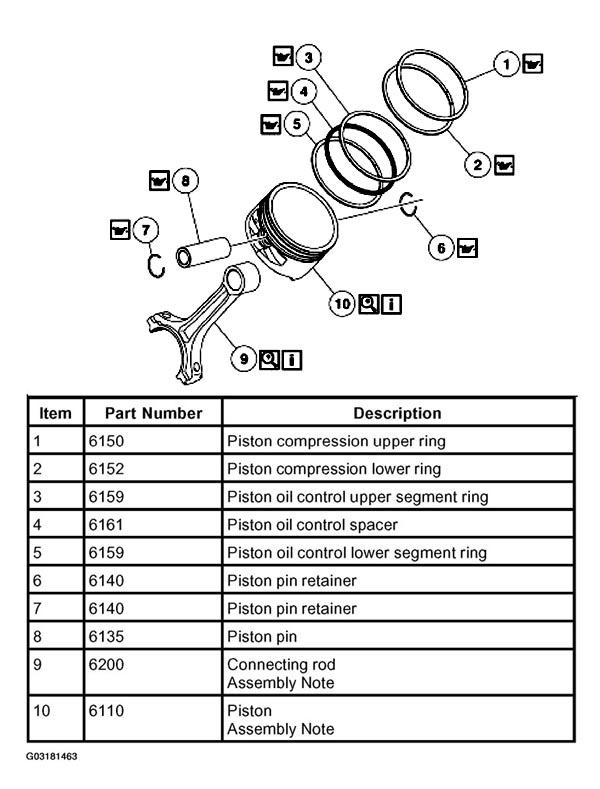

    Fig 1: Exploded View Of Piston Assembly
    G03181463Courtesy of FORD MOTOR CO.
  2. To assemble, reverse the disassembly procedure.
