Item 1: Transmission Case Assembly Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

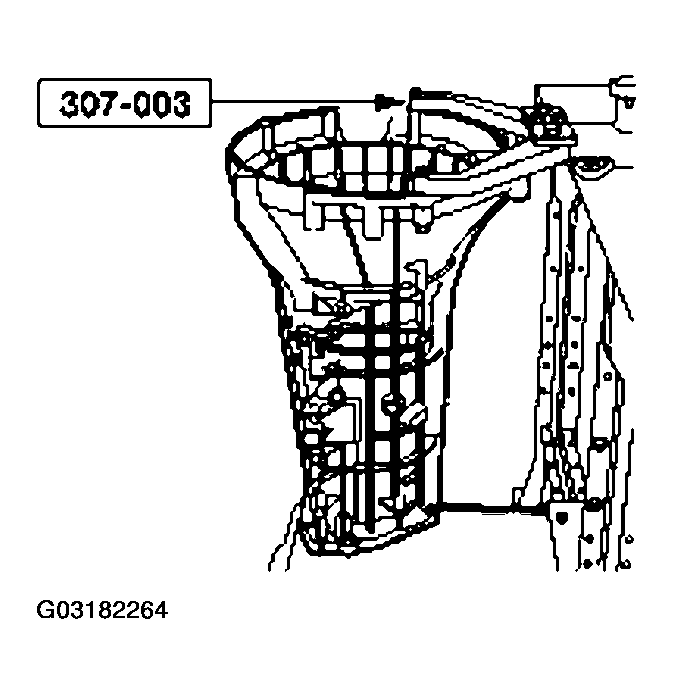

- Using the special tool, install the transmission into the bench with the converter housing facing up.
- Inspect the case bearing for damage. If damage to the case bearing is indicated, install a new case.
WARNING:
Make sure the lock pin on the bench-mounted holding fixture is secure. Failure to follow these instructions can result in personal injury.
