Item 41: Intermediate Brake Band Apply Strut Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Install the intermediate band apply strut.

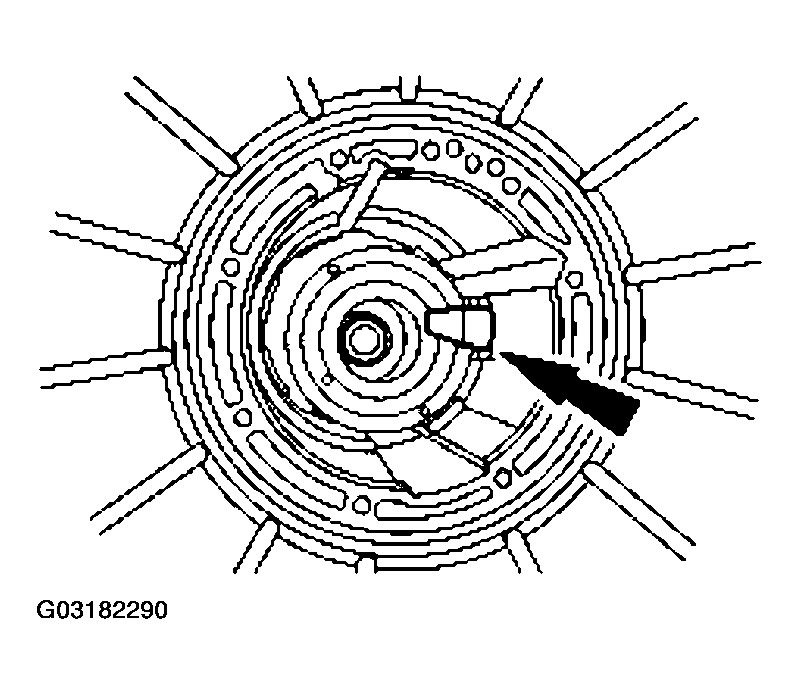

Fig 1: Installing Intermediate Band Apply Strut
Courtesy of FORD MOTOR CO.

CAUTION: If the strut is installed incorrectly, transmission damage will occur.

Fig 2: Checking Intermediate Band Apply Strut

Courtesy of FORD MOTOR CO.

Check to make sure that the intermediate band apply strut is installed in the correct orientation to the case and piston rod.
