WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

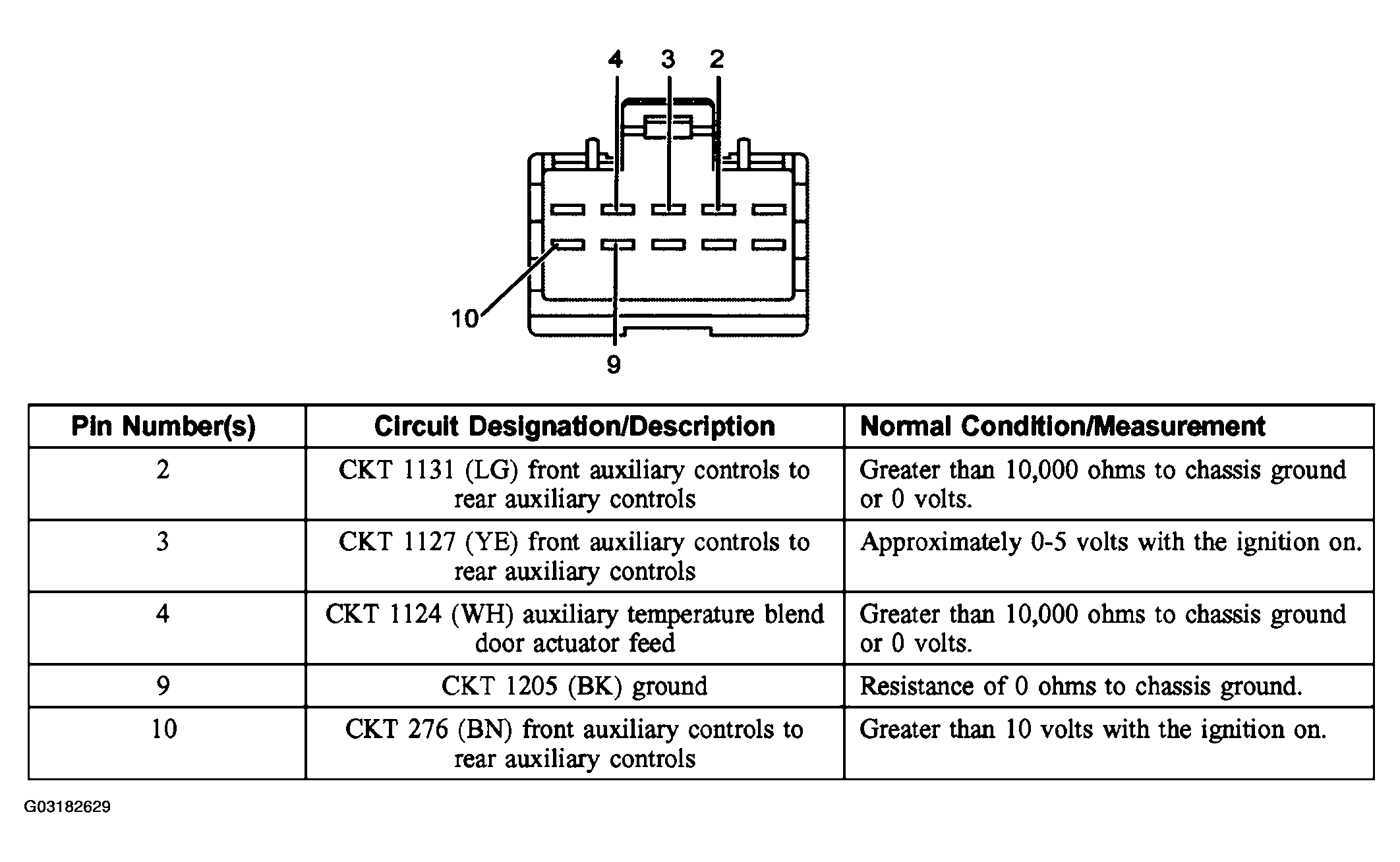

Fig 1: Identifying Rear Auxiliary Control C940A Connector Pins
Courtesy of FORD MOTOR CO.
NOTE:
All measurements taken with the front auxiliary controls in the rear position.
