Removal And Installation: Photocell

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order indicated in the following illustration and table.

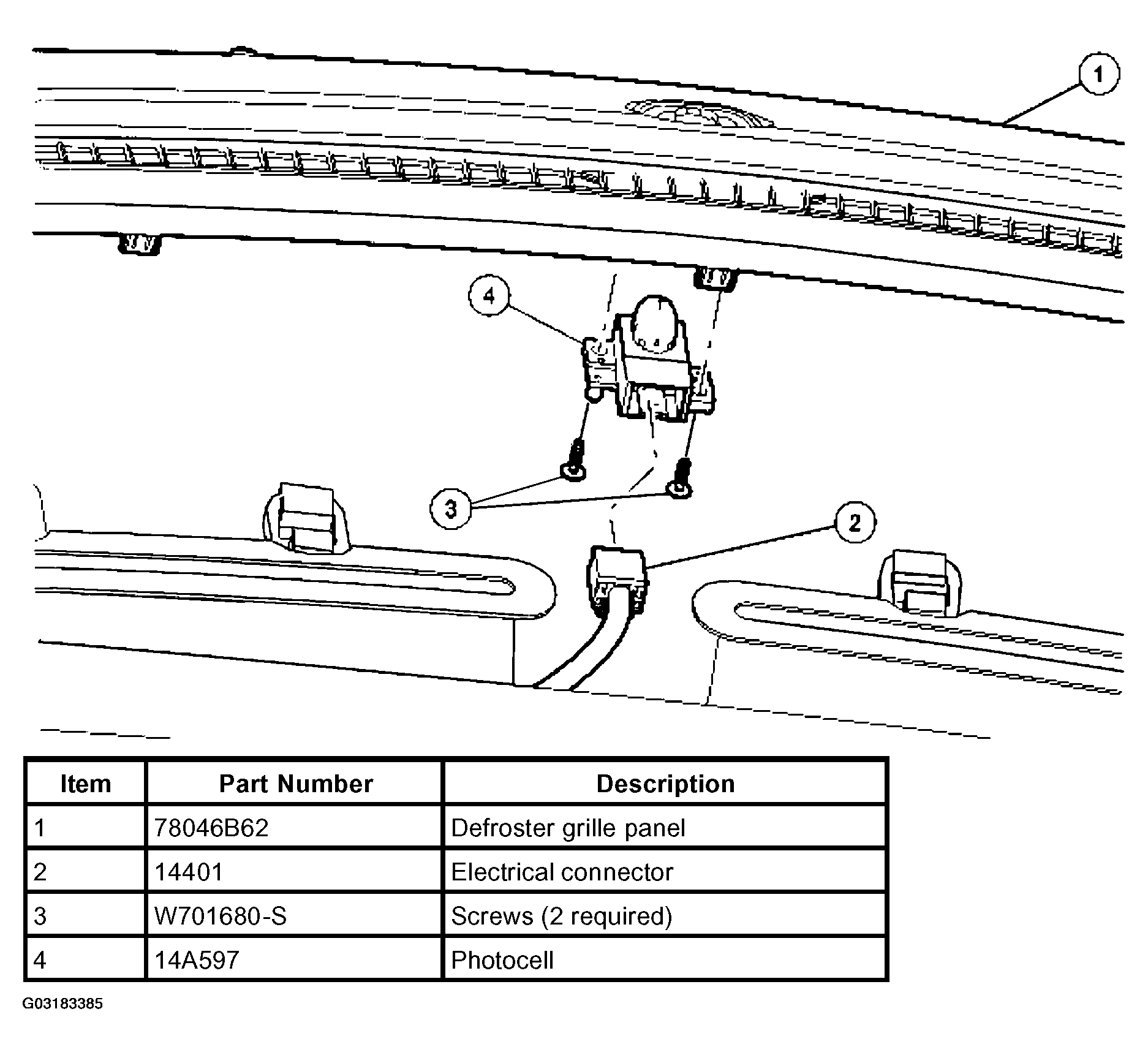

    Fig 1: Removing Photocell And Components
    G03183385Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
