Section 568 (Body Panel System - Body System - Interior)
›
Diagnosis And Testing
›
Roof Opening Panel
›
Connector Circuit Reference
›
Roof Opening Panel Module Assembly C920
Roof Opening Panel Module Assembly C920
WARNING:
This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

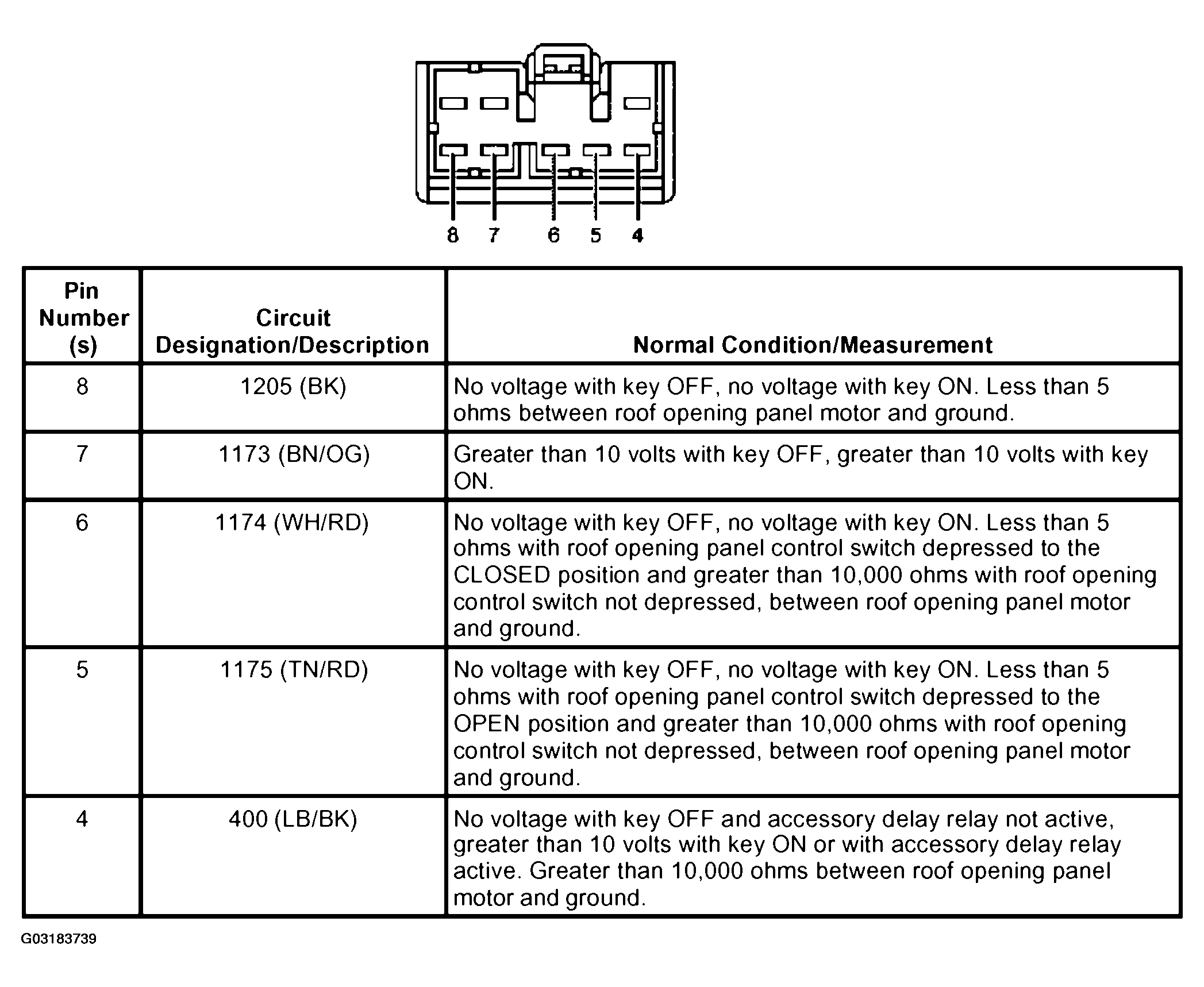

Fig 1: Identifying Roof Opening Panel Module Assembly C920 Connector Pins
Courtesy of FORD MOTOR CO.
