Pinpoint Test A: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

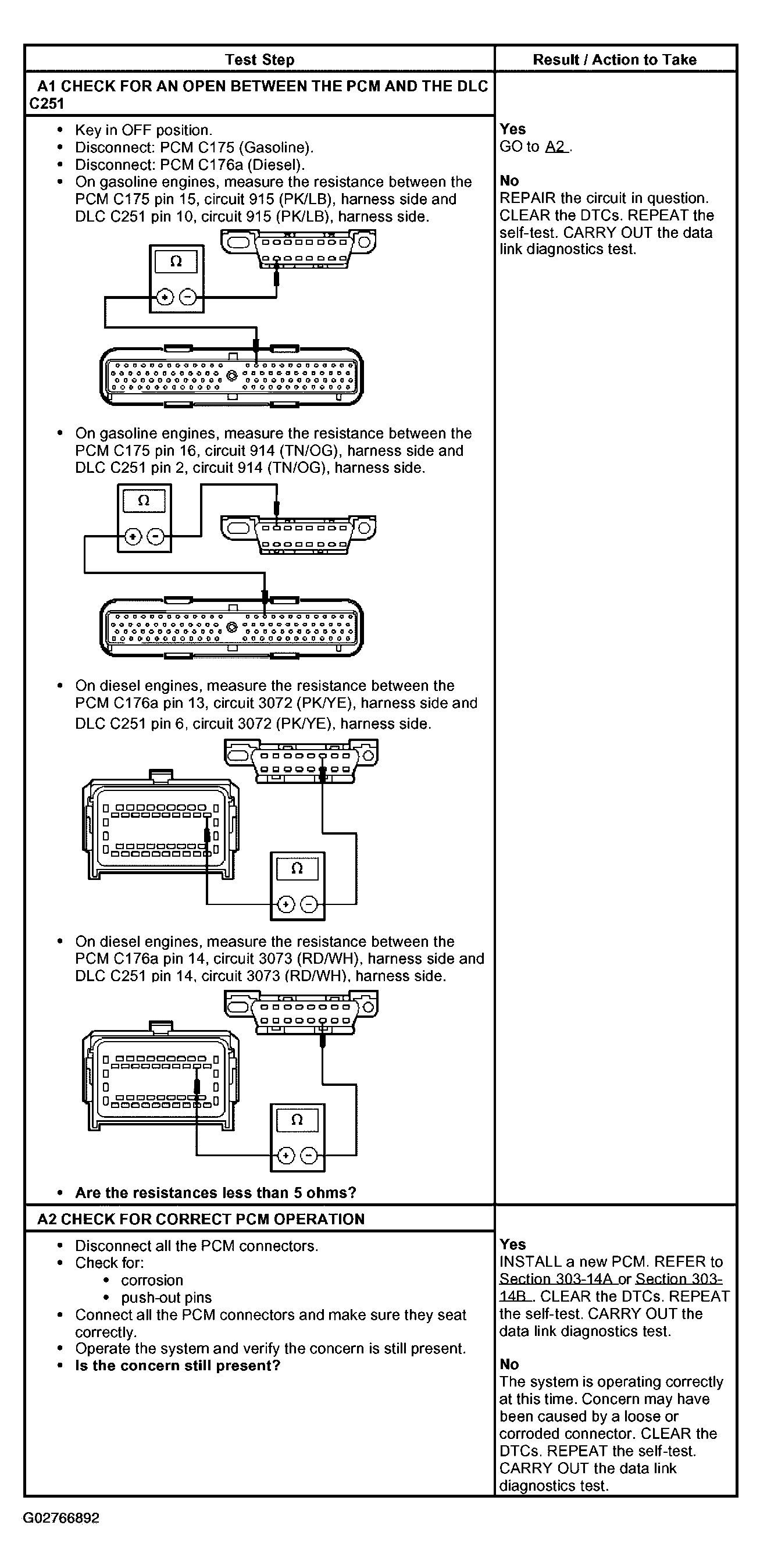

Fig 1: Pinpoint Test A: Powertrain Control Module Not Respond To Diagnostic Tool (Steps A1-A2)
G02766892Courtesy of FORD MOTOR CO.
