Item 6: Case Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Applying excess silicone gasket and sealant can damage the internal components.

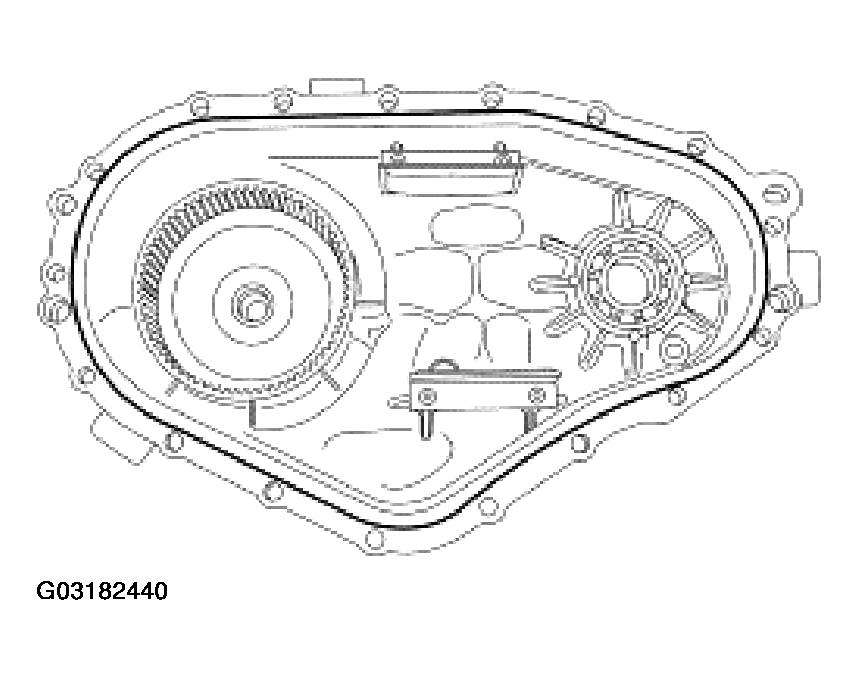

    Fig 1: Applying 3 mm (0.125 In) Bead Of Silicone Gasket And Sealant On Rear Case Mating Surface
    G03182440Courtesy of FORD MOTOR CO.
  1. Apply a 3 mm (0.125 in) bead of silicone gasket and sealant on the rear case mating surface.
