Control Valve Body: Notes

WARNING: This page is about a different car, the 2002 Ford Ranger, 2002 Ford Explorer Sport Trac, and 2002 Ford Explorer Sport. However, it is still accessible from the selected car via links, so may be relevant.

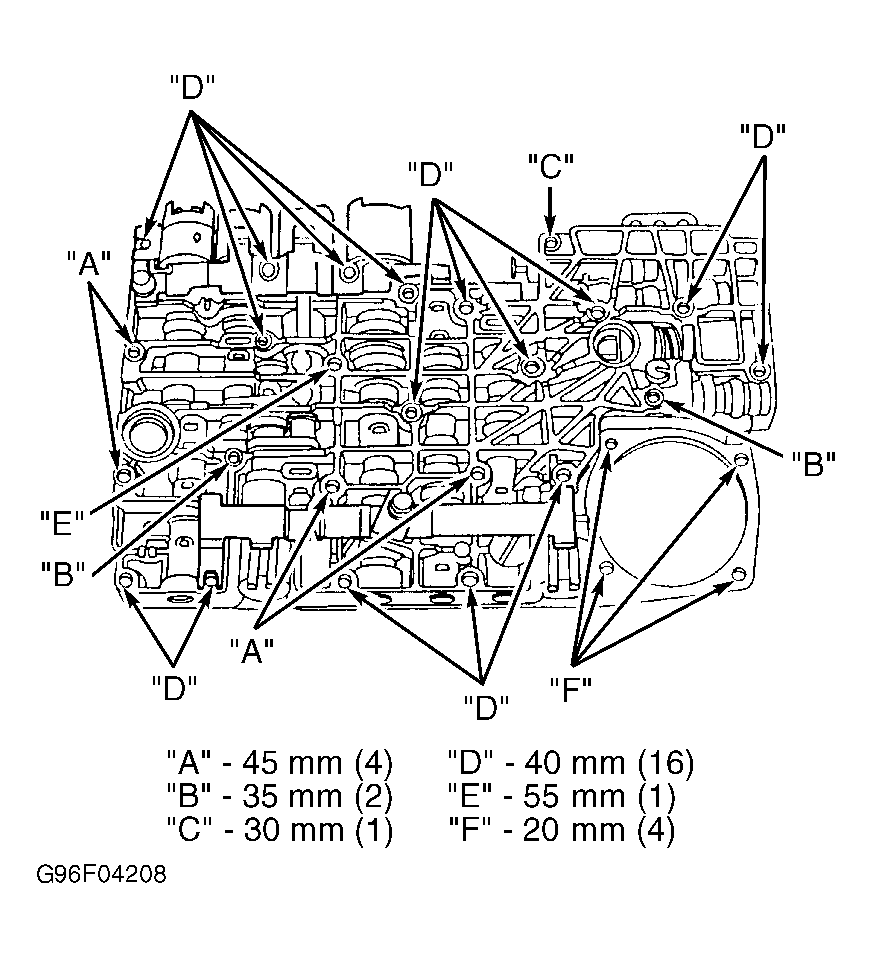

NOTE: Note length and location of valve body bolts for reassembly reference. See Figure .
