Section 740 (Component Testing)
›
Component Testing
›
Multifunction Switch, Lamp Portion
Multifunction Switch, Lamp Portion
WARNING:
This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

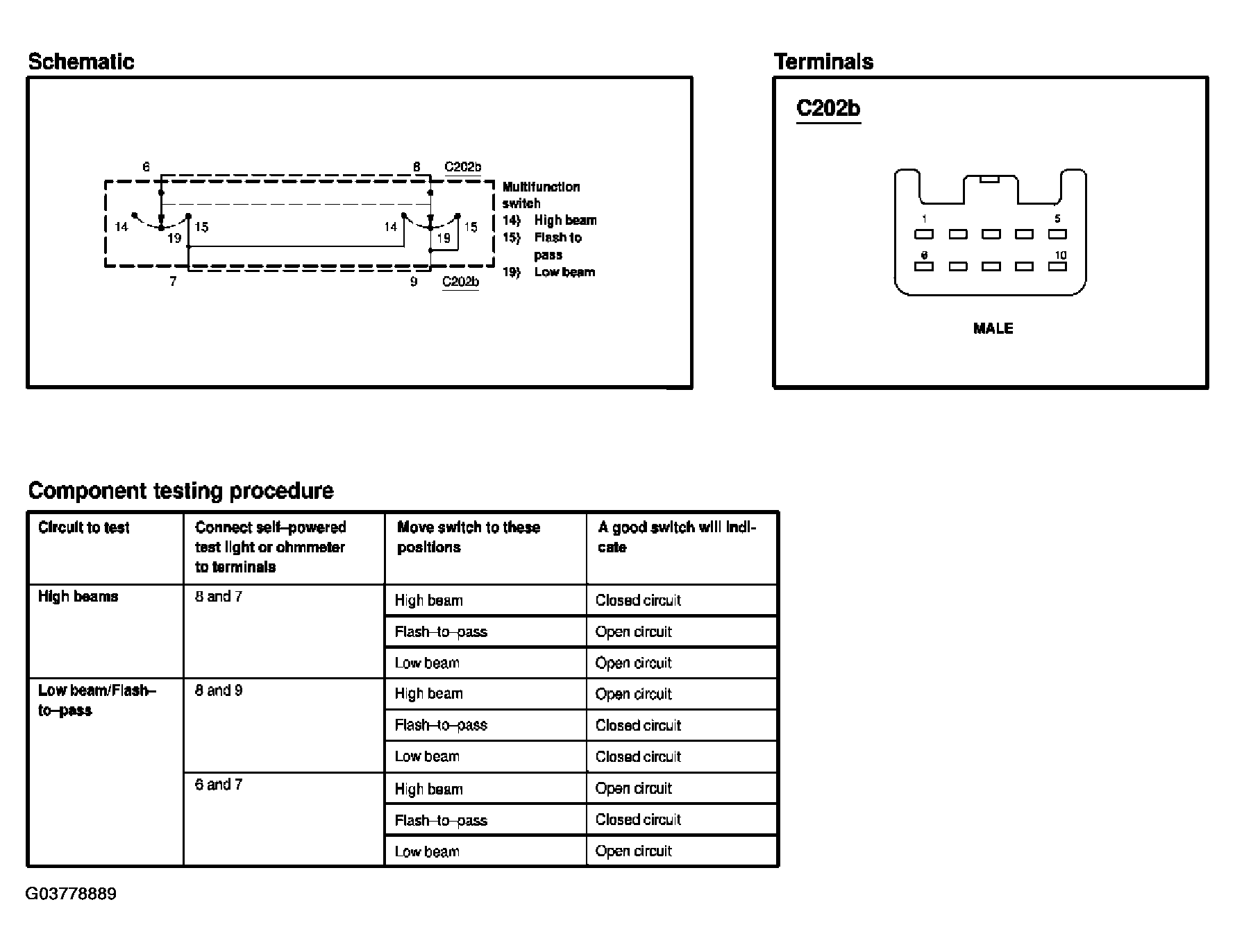

Fig 1: Testing Multifunction Switch, Lamp Portion
Courtesy of FORD MOTOR CO.
