Front Disc Brake

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

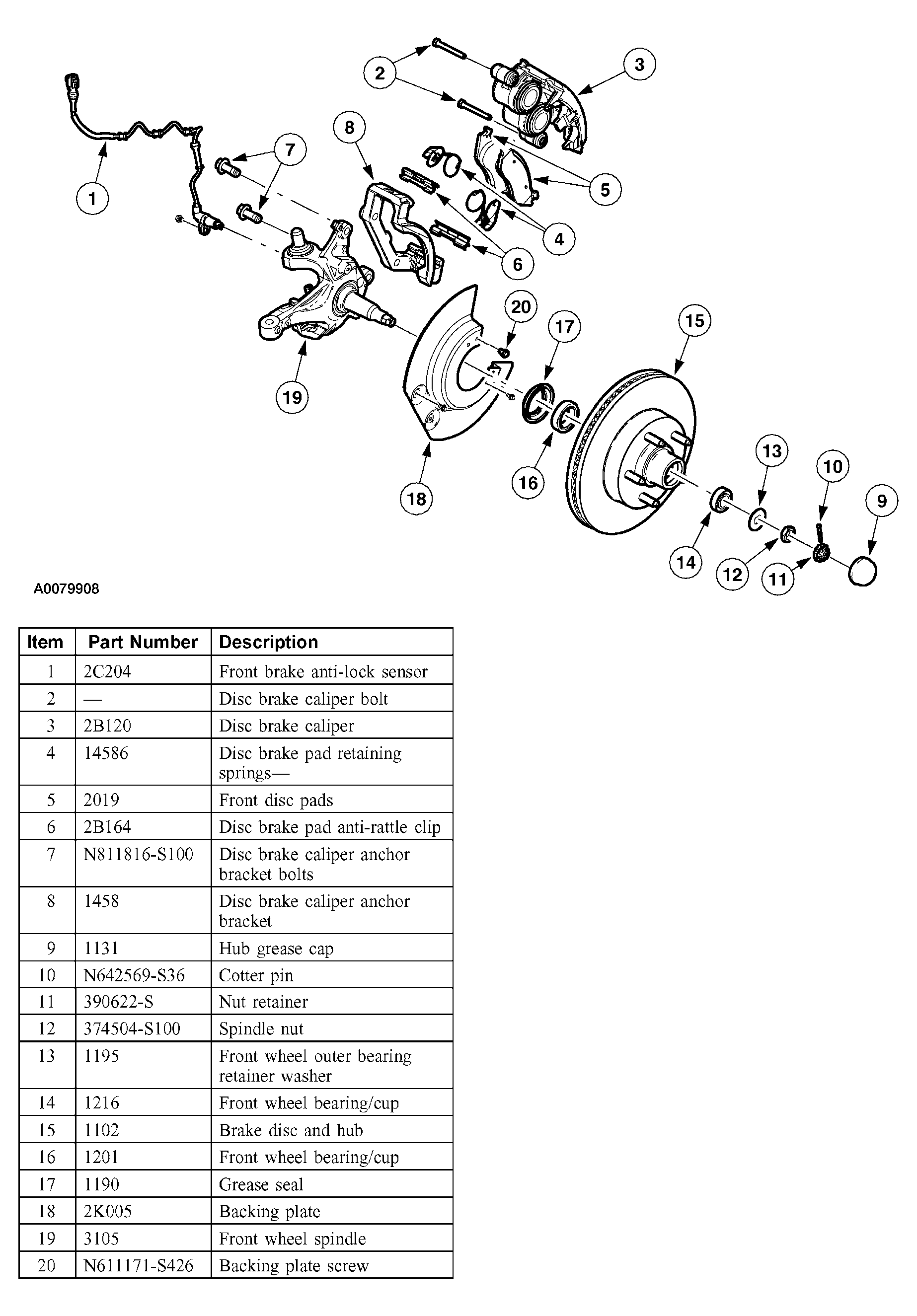

Fig 1: Identifying Front Disc Brake Components - E-150

Courtesy of FORD MOTOR CO.

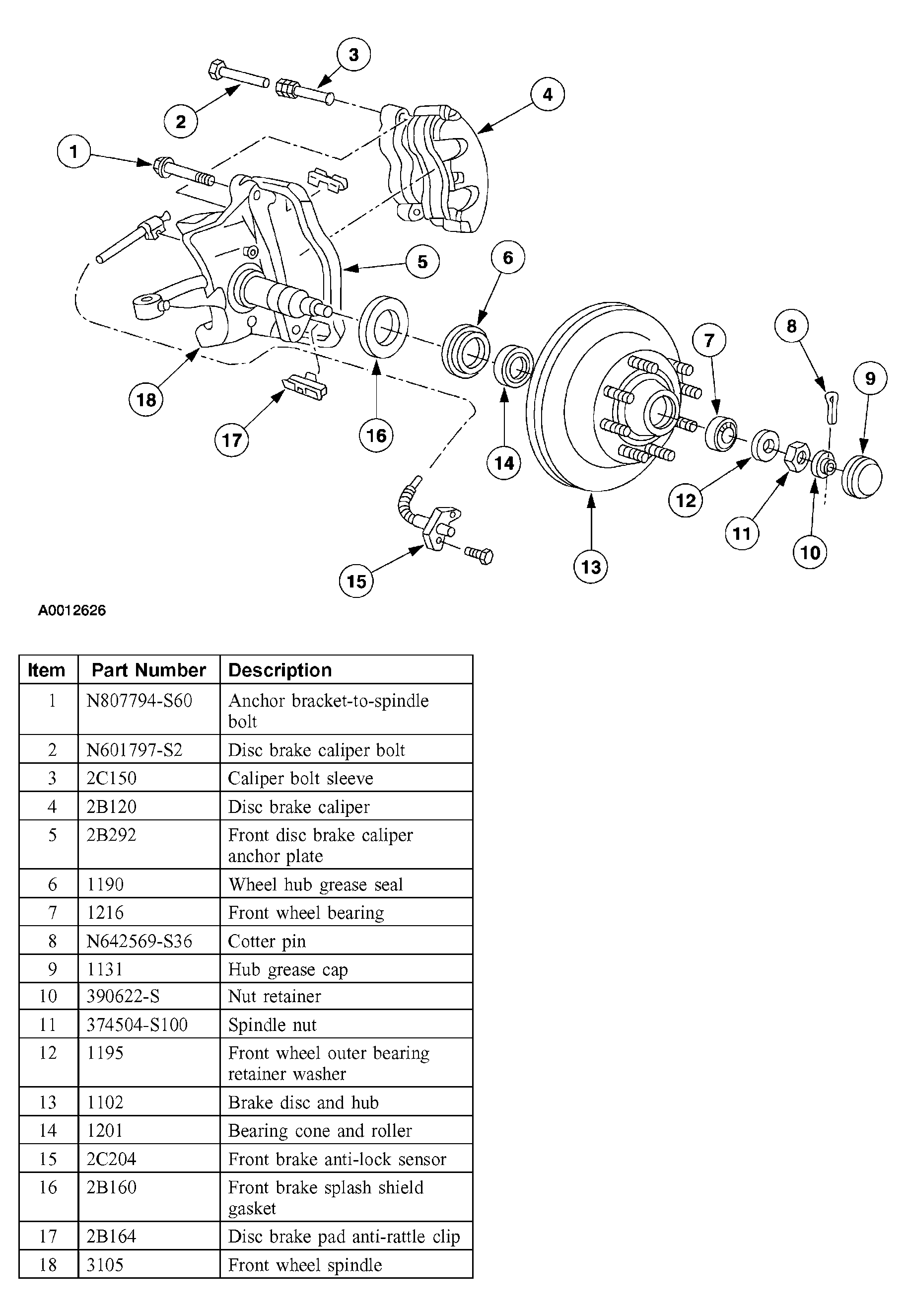

Fig 2: Identifying Front Disc Brake Components - E-250, E-350, Single Rear Wheel

Courtesy of FORD MOTOR CO.

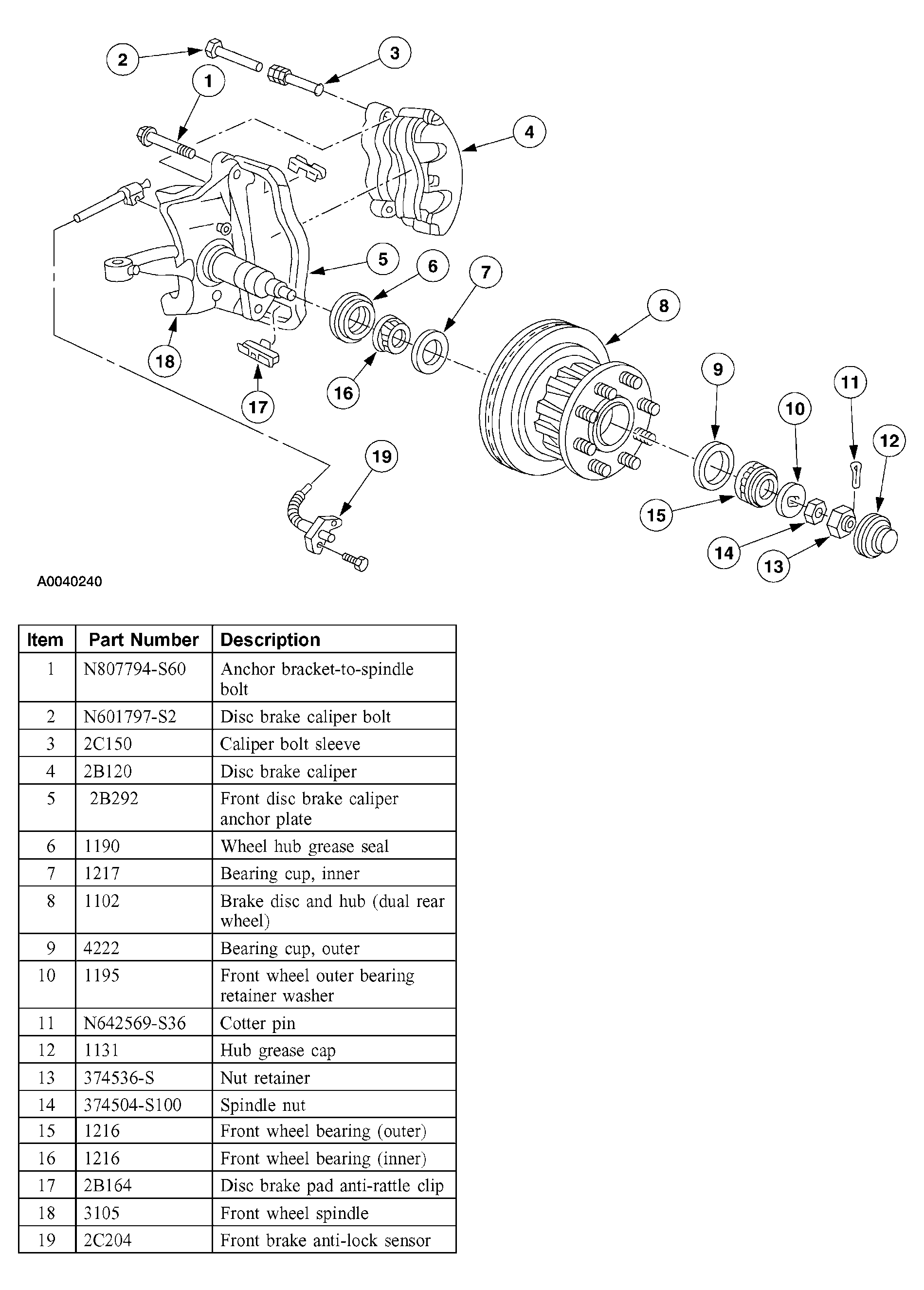

Fig 3: Identifying Front Disc Brake Components - E-350, E-450 And Dual Rear Wheel

Courtesy of FORD MOTOR CO.

The brake disc and hub is an integrally cast assembly.

The disc brake caliper:

bolts to the front disc brake caliper anchor plate, which bolts to the front wheel spindle.
is a pin slider, dual piston type.

The caliper housing has a fluid inlet at the center of the bore. A square section seal fitted into an annular groove in the caliper bore seals against hydraulic pressure, while rubber boots seal the caliper pistons and caliper bore from contamination.

The pads are:

contained within the front disc brake caliper anchor plate.
held to the front disc brake caliper anchor plate abutments by brake disc anti-rattle clips.
