Camshaft End Play: Procedure

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a Dial Indicator Gauge with Holding Fixture to measure camshaft end play.
  2. Position the camshaft to the rear of the cylinder head.
  3. Zero the indicator.
  4. Move the camshaft to the front of the cylinder head. Note and record the camshaft end play.
    • If camshaft end play exceeds specifications, install new camshaft and recheck end play. Refer to appropriate ENGINE article for the procedure.
    • If camshaft end play exceeds specification after camshaft installation, install a new cylinder head. Refer to appropriate ENGINE article for the procedure.

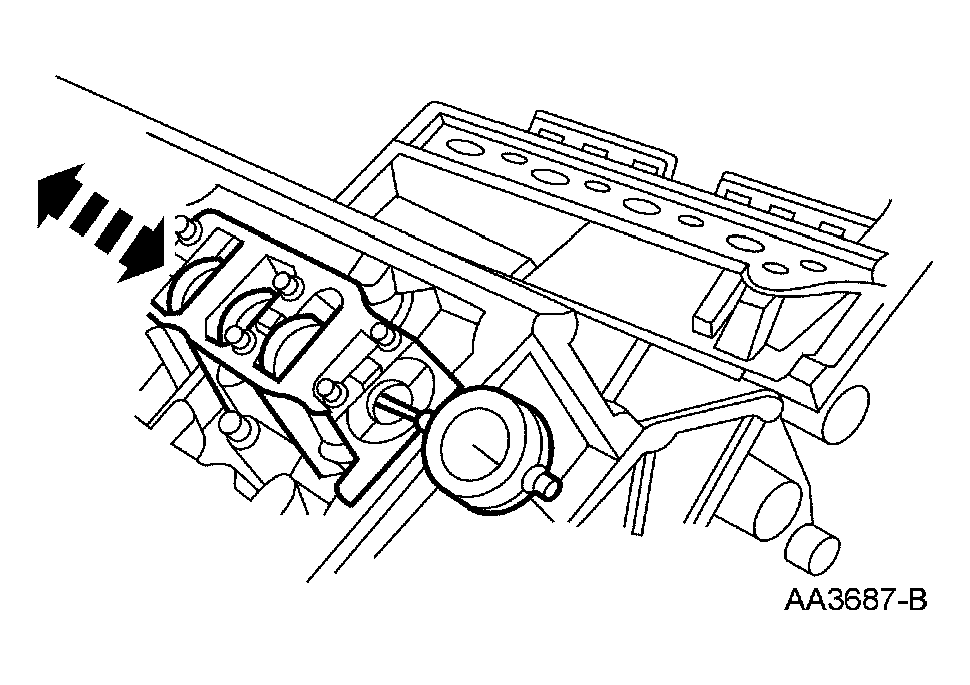

      Fig 1: Using Dial Indicator Gauge With Holding Fixture To Measure Camshaft End Play
      G03885002Courtesy of FORD MOTOR CO.
