Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the air cleaner assembly and air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Disconnect the powertrain control module (PCM) electrical connectors.

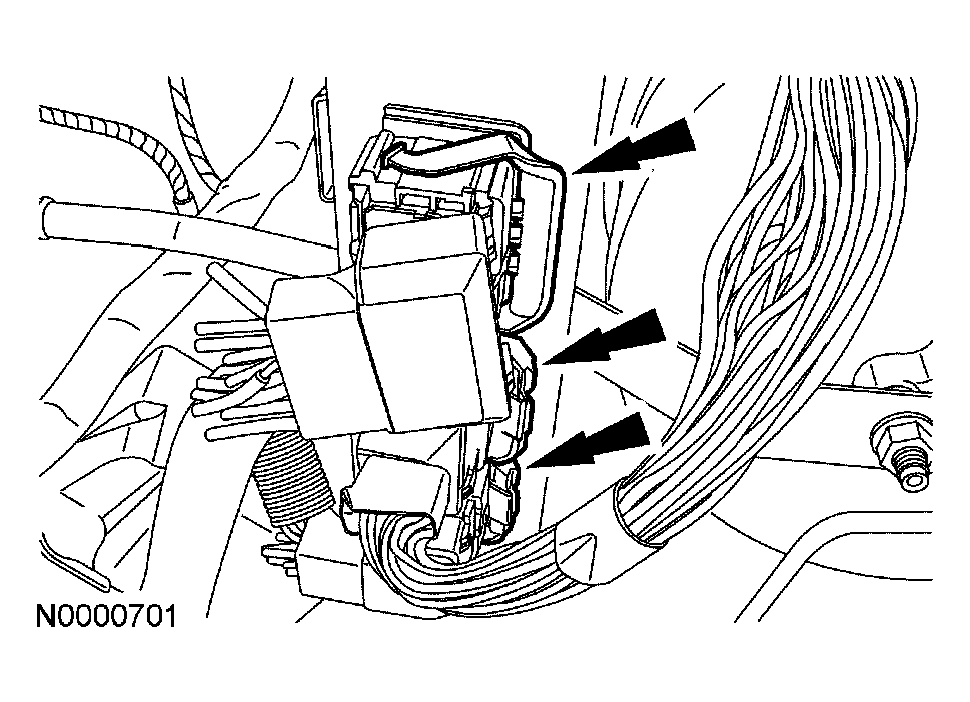

    Fig 1: Disconnecting Powertrain Control Module (PCM) Electrical Connectors
    G03888365Courtesy of FORD MOTOR CO.
  4. Remove the retaining nuts and PCM.

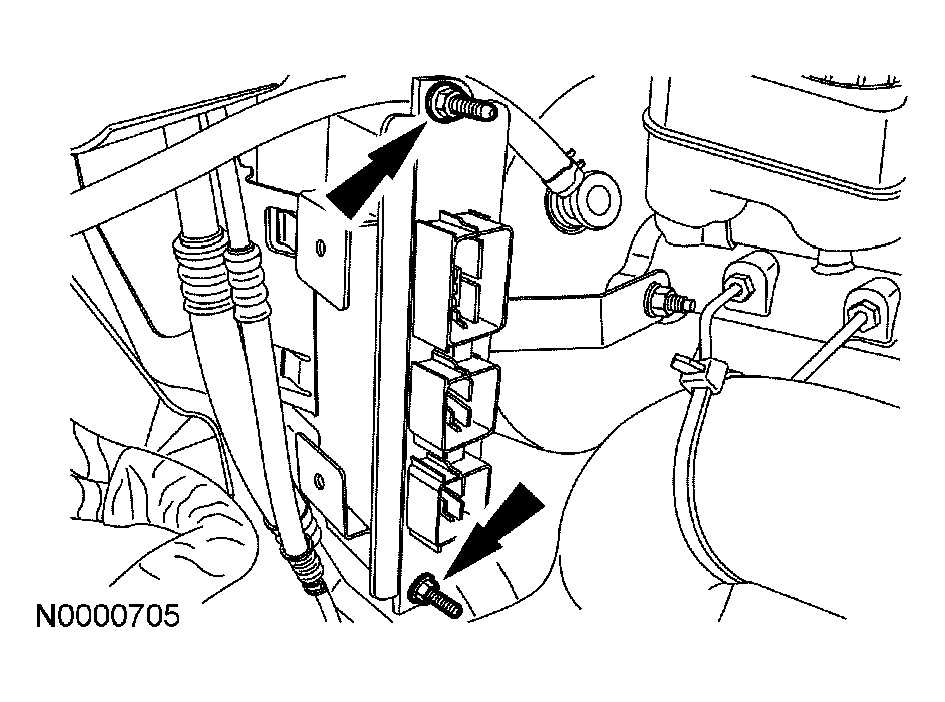

    Fig 2: Removing PCM Retaining Nuts
    G03888366Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
