Symptom Tests: Notes
SYMPTOM INDEX
| Symptom | Perform Test | ||
|---|---|---|---|
| A/C Inoperative Or Does Not Operate Properly | A | ||
| No Operation In All Temperature Settings | B | ||
| Blower Motor Inoperative | C | ||
| Improper/Erratic Airflow From Outlets | D | ||
| Insufficient, Erratic Or No Heat | E | ||
| Blower Motor Operates Continuously In High Speed | F | ||
| No Operation In High Speed Setting | G | ||
| No Blower Motor Operation In Lower Speed Settings | H | ||

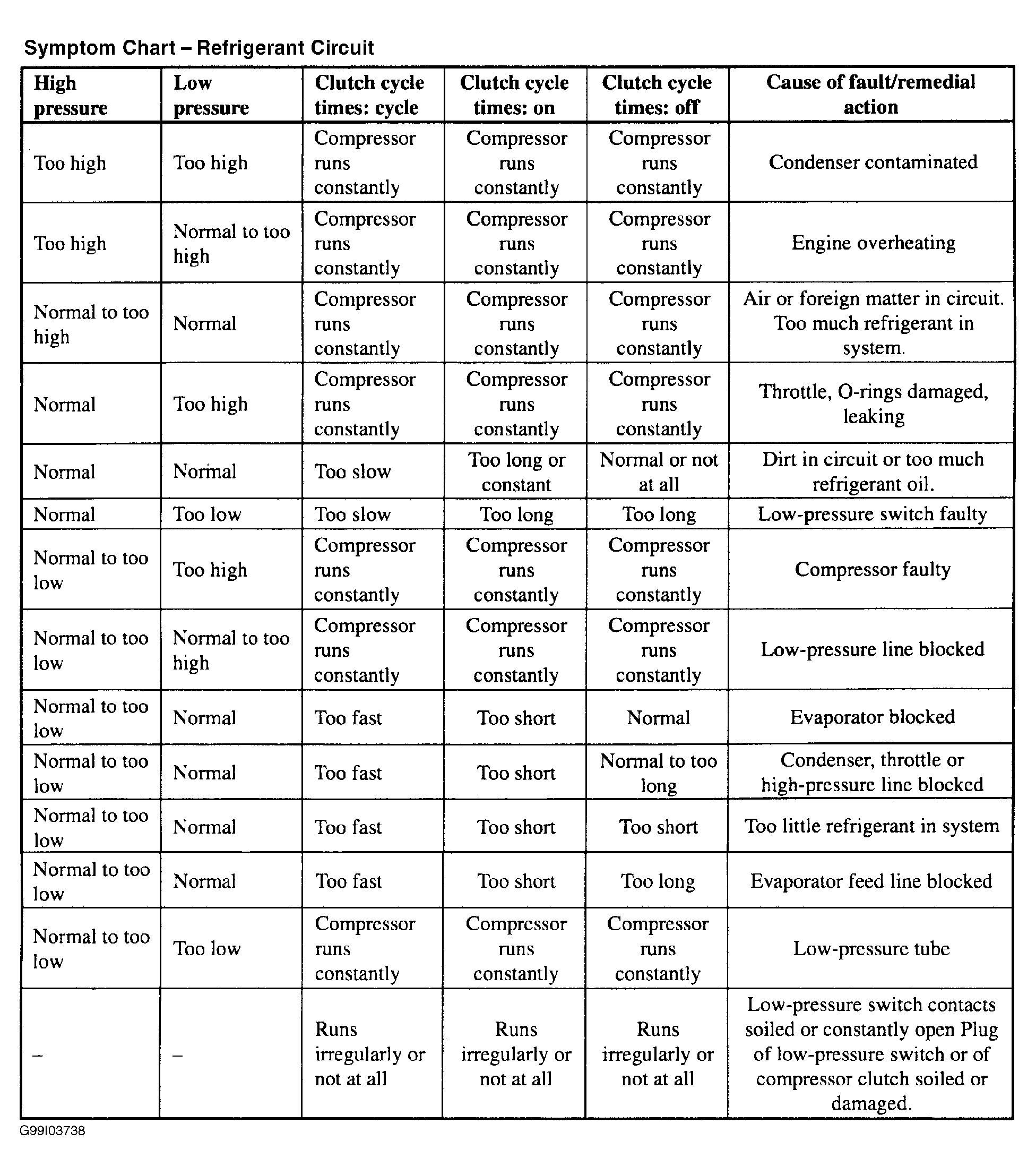

| Compressor Refrigerant Circuit Symptoms | (1) | ||
|
|||
