Bumper - Exploded View, Rear

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

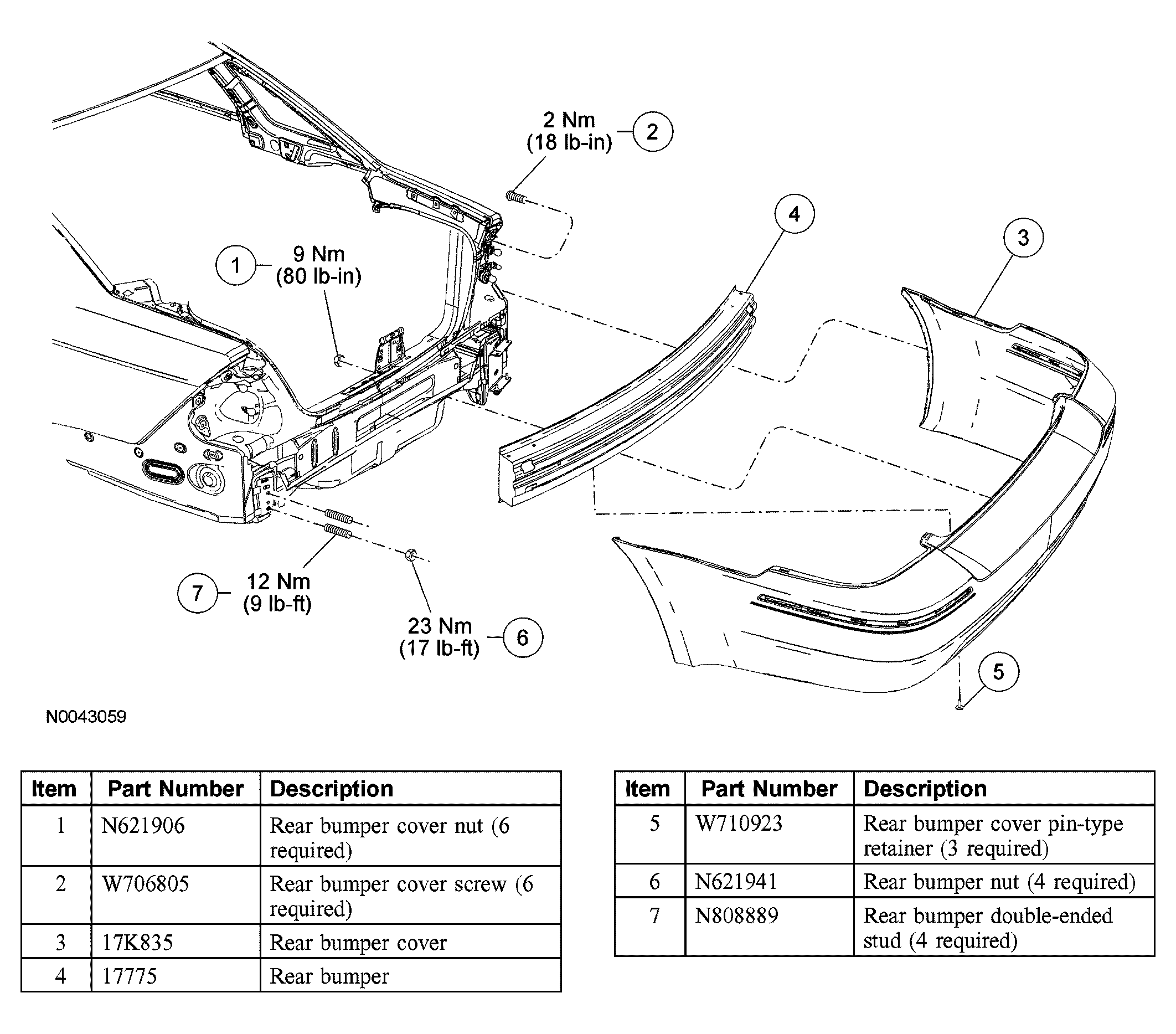

Fig 1: Removing/Installing Rear Bumper (Five Hundred, Montego)

Courtesy of FORD MOTOR CO.

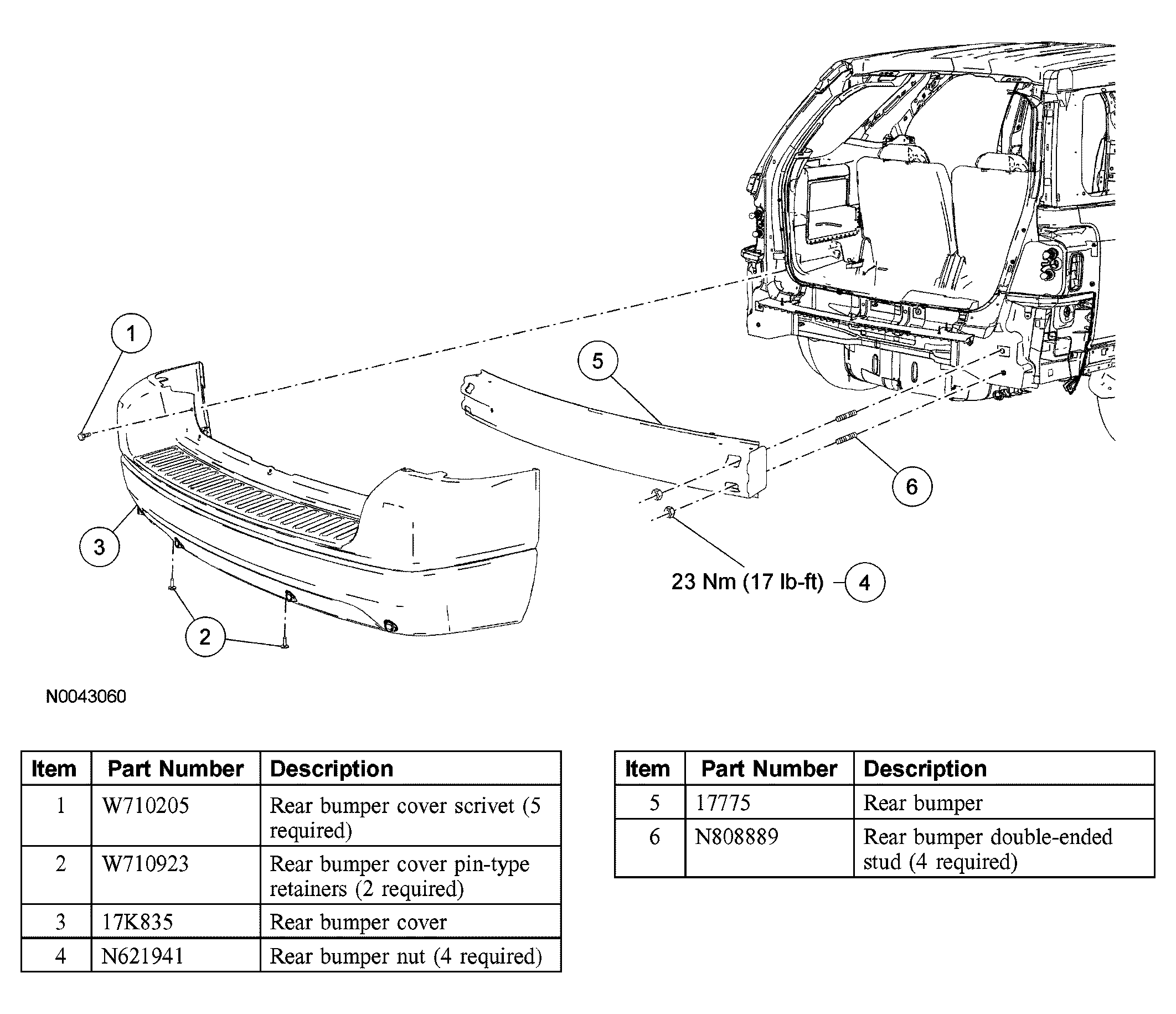

Fig 2: Removing/Installing Rear Bumper (Freestyle)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
