Message Center Switch Connector - C253

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

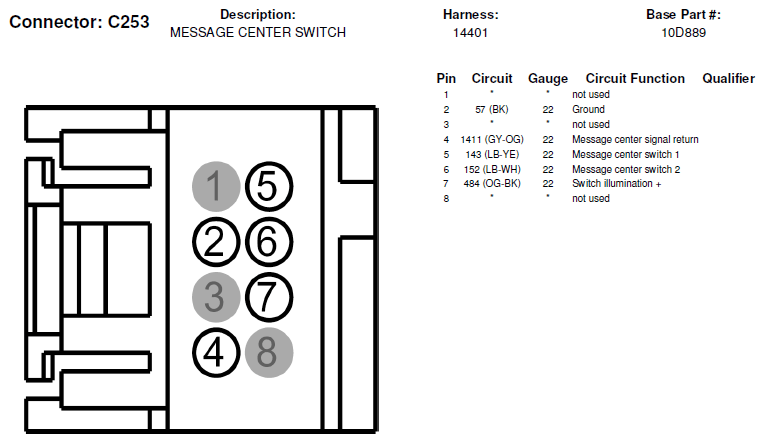

Fig 1: Message Center Switch Connector End View (C253)

Courtesy of FORD MOTOR CO.
