Throttle Position Sensor Connector - C1449

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

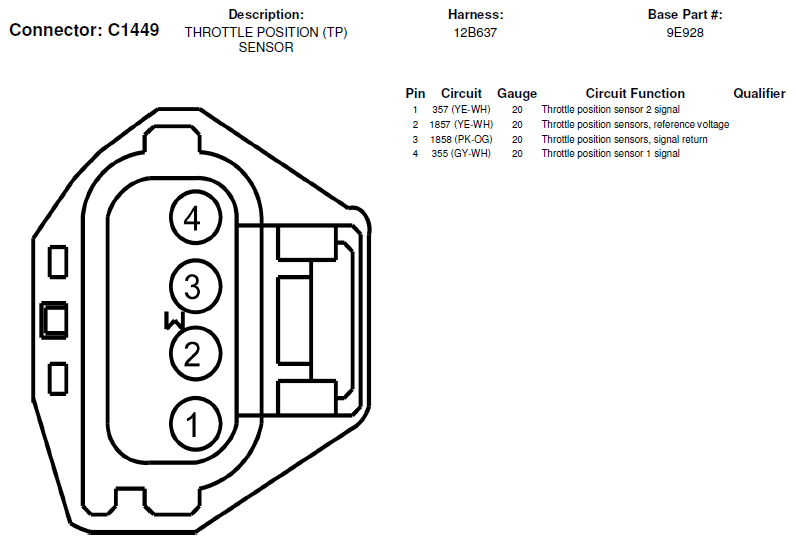

Fig 1: Throttle Position Sensor Connector End View (C1449)

Courtesy of FORD MOTOR CO.
