Excursion 7.3 F, RWD
›
Repair and Diagnosis
›
Electrical
›
Fuses & Circuit Breakers
›
Identification
›
Battery Junction Box
Battery Junction Box
NOTE:
Battery junction box may also be referred to as power distribution box.
NOTE:
Battery junction box is located on driver's side of engine compartment, near brake master cylinder. See
Fig 1
and
Fig 2
.

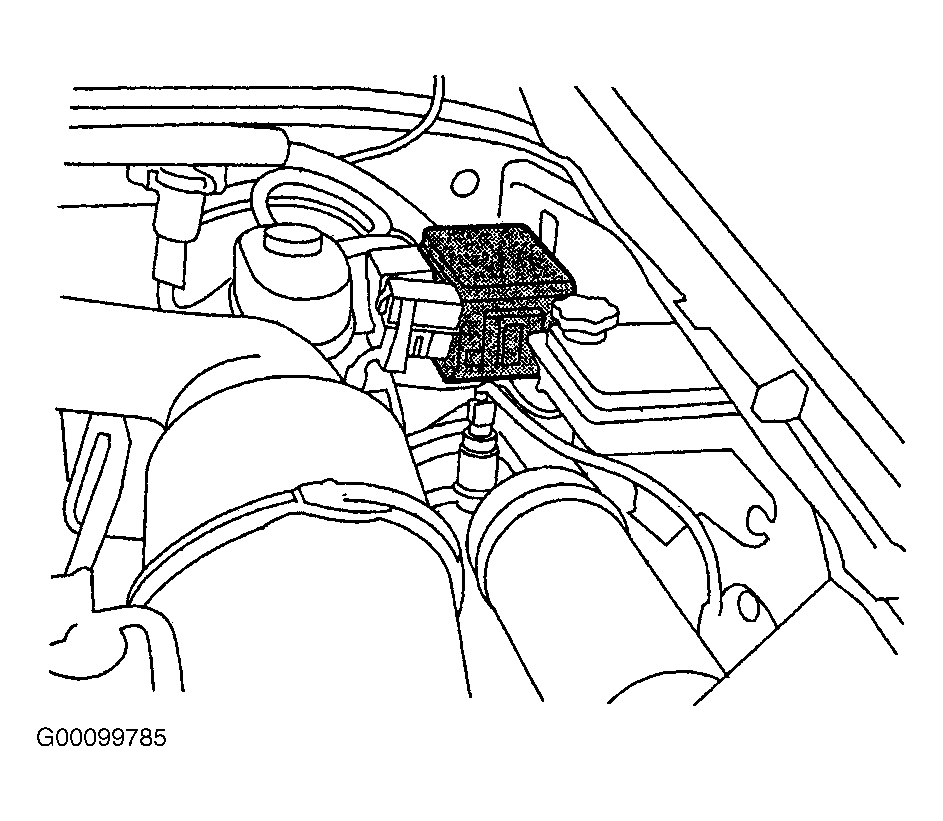

Fig 1: Locating Power Distribution Box (1 Of 2)
Courtesy of FORD MOTOR CO.

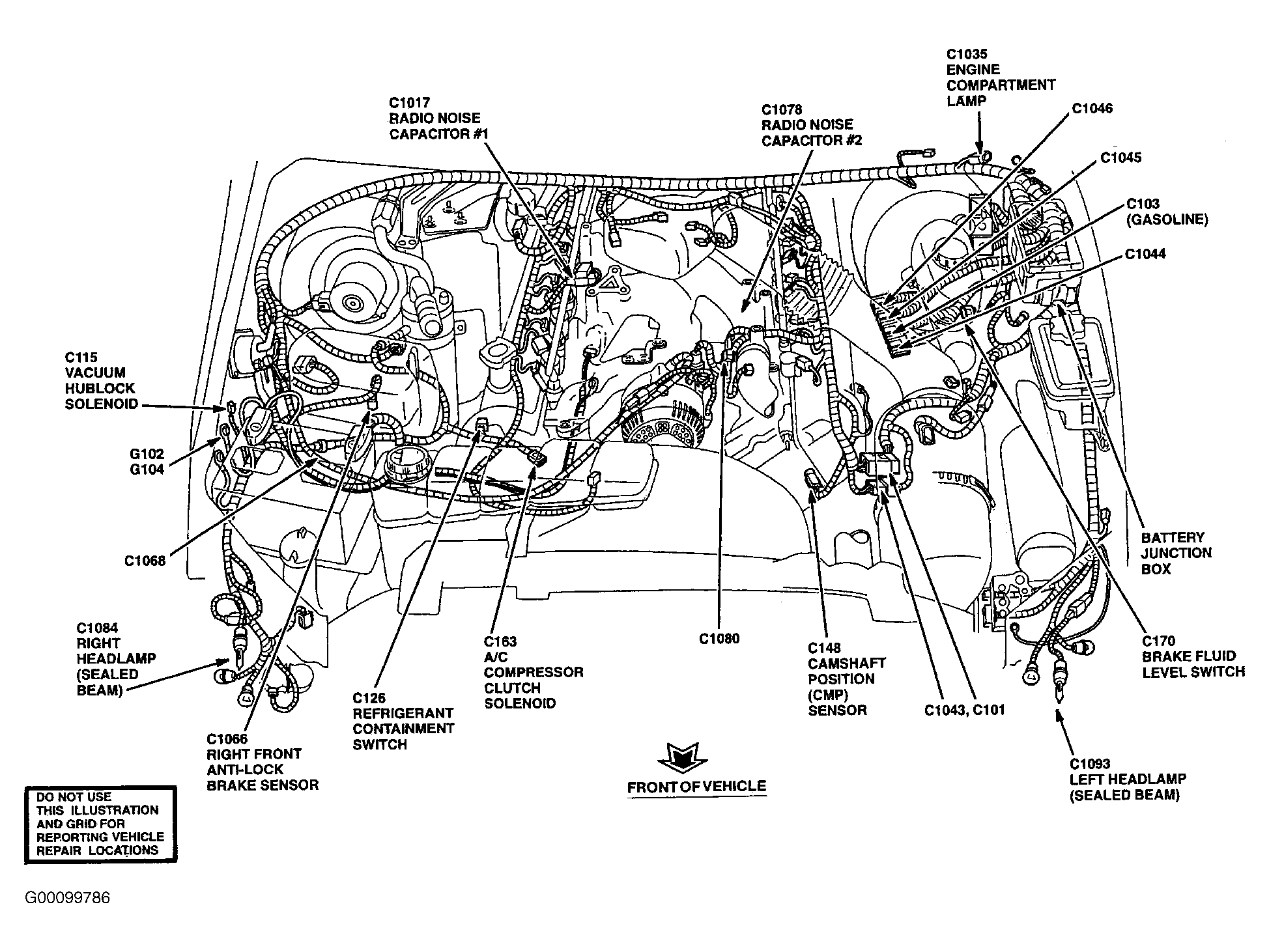

Fig 2: Locating Power Distribution Box (2 Of 2)
Courtesy of FORD MOTOR CO.

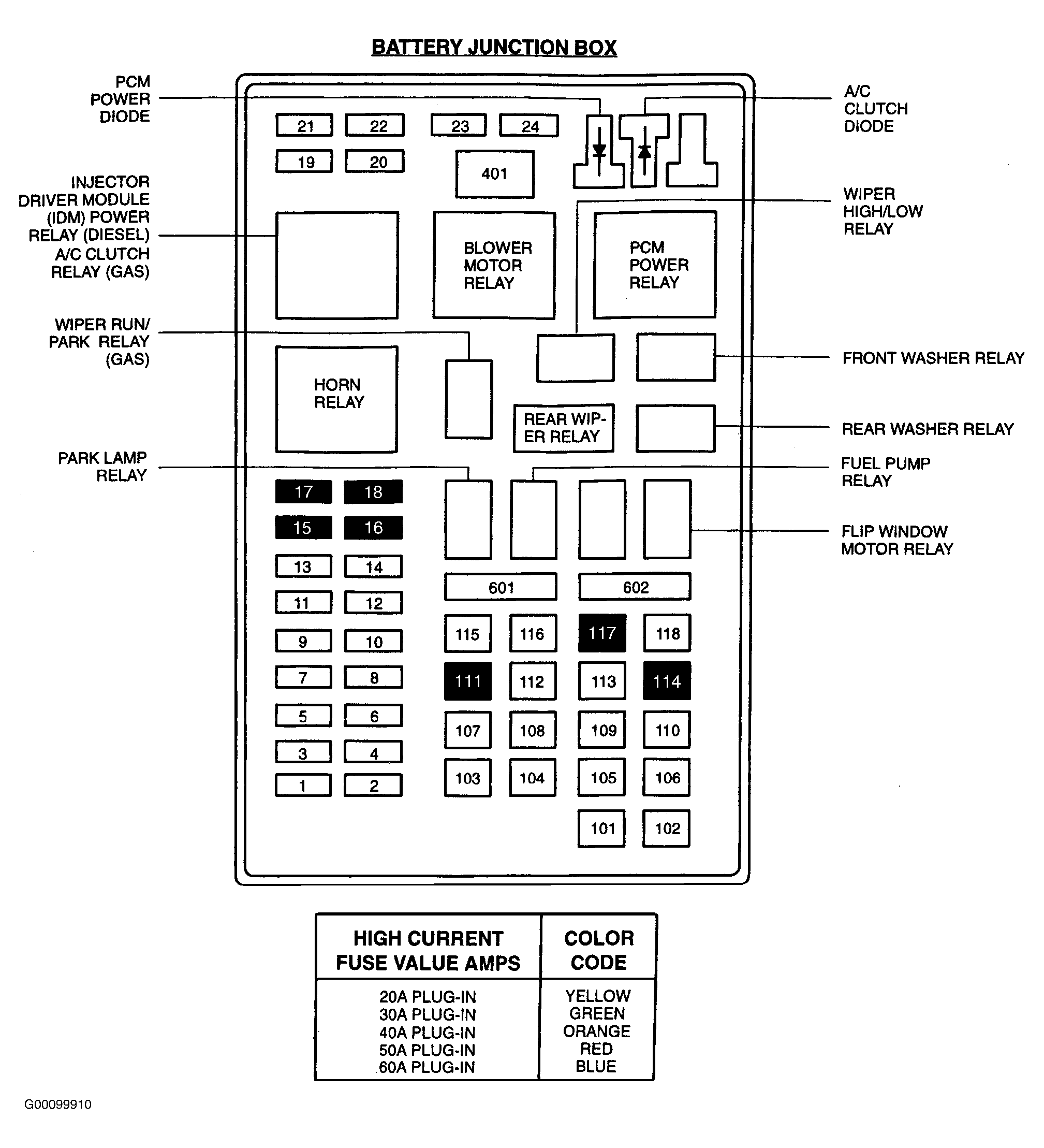

Fig 3: Identifying Battery Junction Box Components
Courtesy of FORD MOTOR CO.

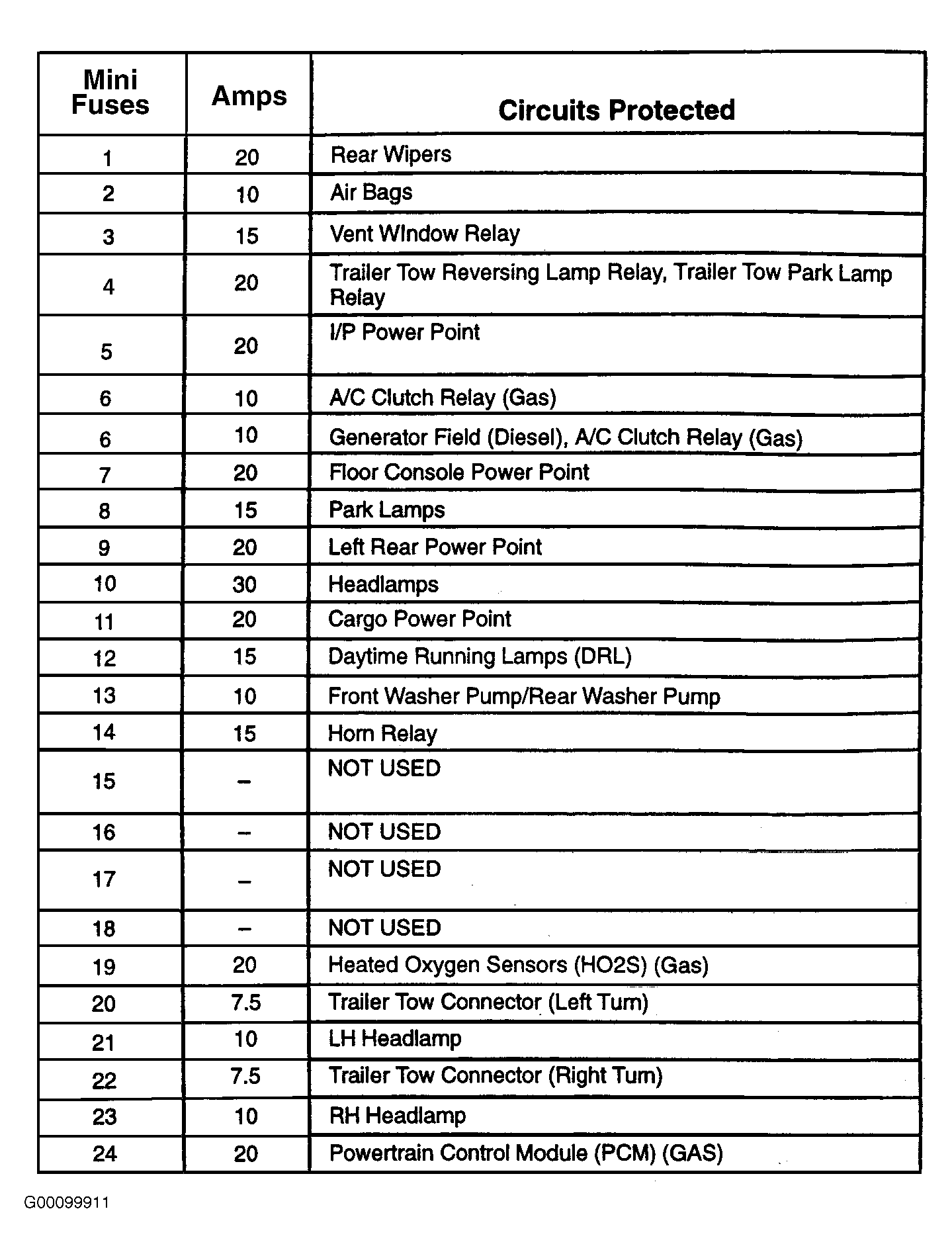

Fig 4: Battery Junction Box Legend (1 Of 2)
Courtesy of FORD MOTOR CO.

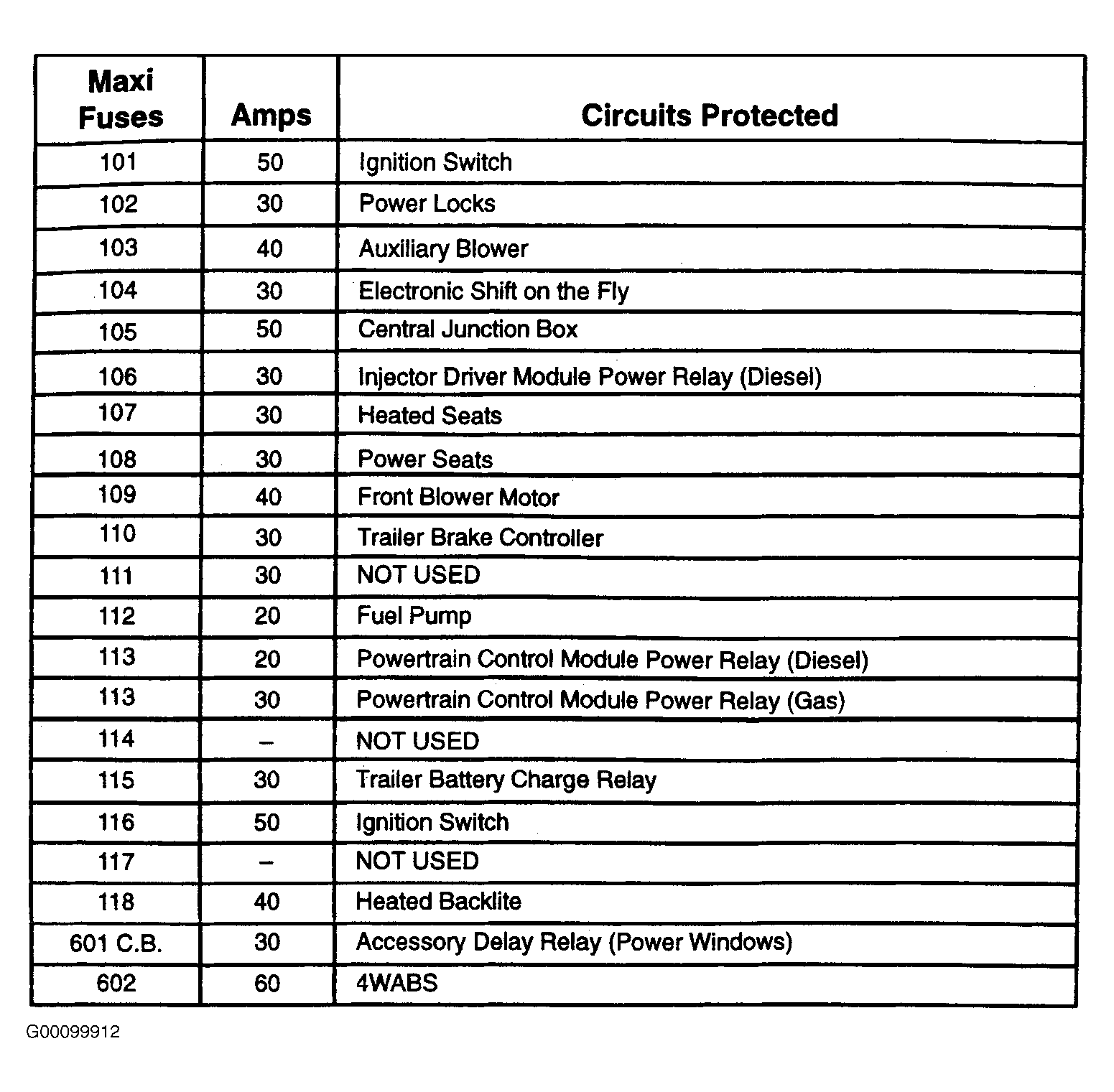

Fig 5: Battery Junction Box Legend (2 Of 2)
Courtesy of FORD MOTOR CO.
