Ford
›
2000
›
Excursion 7.3 F, RWD
›
Repair and Diagnosis
›
Electrical
›
Fuses & Circuit Breakers
›
Identification
›
Central Junction Box
Central Junction Box
NOTE:
Central junction box may also be known as passenger compartment fuse panel.
NOTE:
Central junction is located under driver's side of instrument panel. See
Fig 1
.

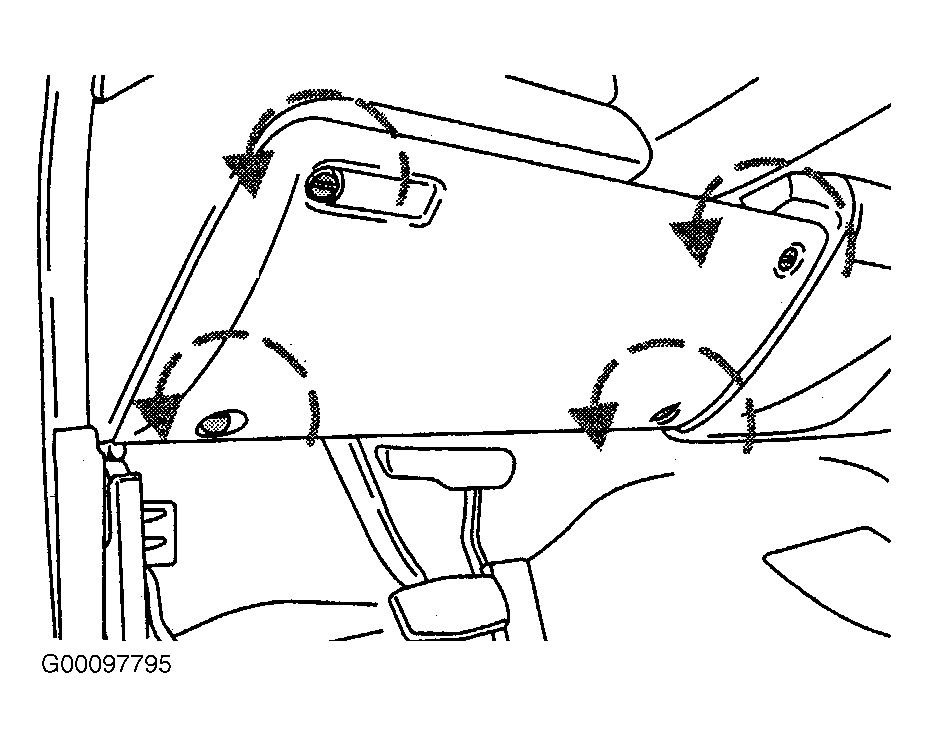

Fig 1: Accessing Central Junction Box
Courtesy of FORD MOTOR CO.

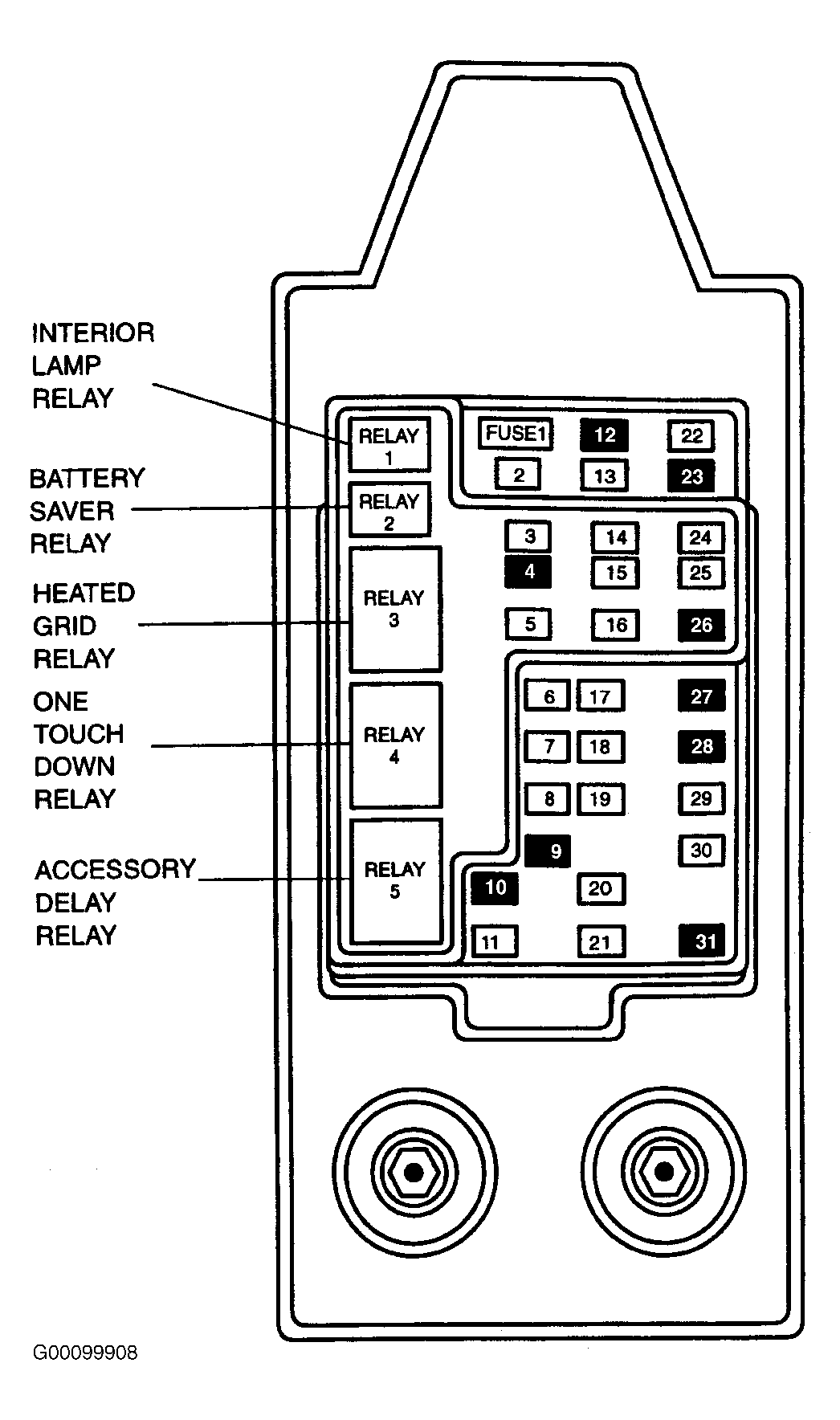

Fig 2: Identifying Central Junction Box Components
Courtesy of FORD MOTOR CO.

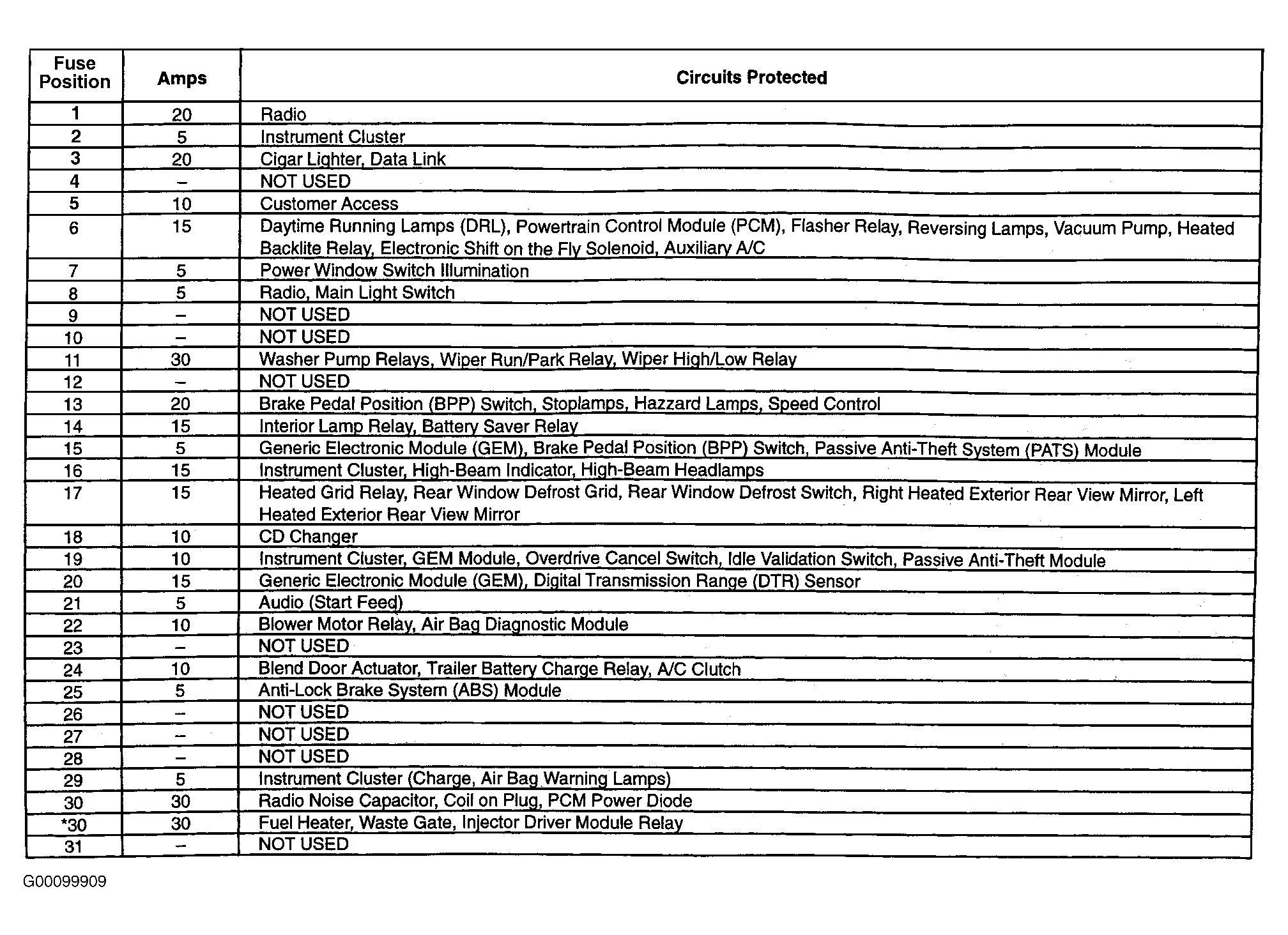

Fig 3: Central Junction Box Legend
Courtesy of FORD MOTOR CO.
